92 Series Plastic Bodied Articulated Bushing Connection Feet

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 9.2

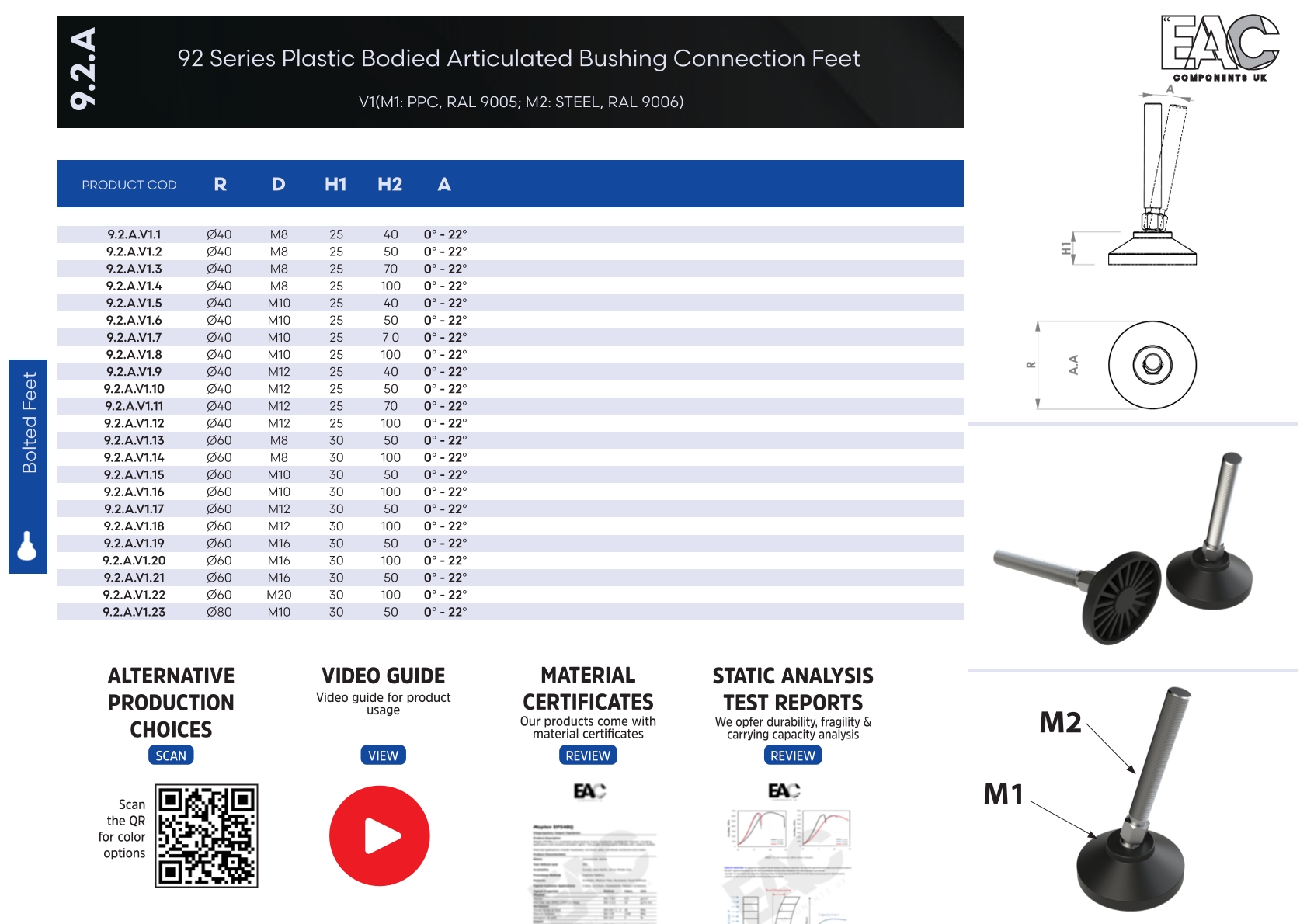

Material and Color Options (V)
9.2.A.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø40 M8 40 9.2.A.V1.1
Ø40 M8 50 9.2.A.V1.2
Ø40 M8 70 9.2.A.V1.3
Ø40 M8 100 9.2.A.V1.4
Ø40 M10 40 9.2.A.V1.5
Ø40 M10 50 9.2.A.V1.6
Ø40 M10 70 9.2.A.V1.7
Ø40 M10 100 9.2.A.V1.8
Ø40 M12 40 9.2.A.V1.9
Ø40 M12 50 9.2.A.V1.10
Ø40 M12 70 9.2.A.V1.11
Ø40 M12 100 9.2.A.V1.12
Ø60 M8 50 9.2.A.V1.13
Ø60 M8 100 9.2.A.V1.14
Ø60 M10 50 9.2.A.V1.15
Ø60 M10 100 9.2.A.V1.16
Ø60 M12 50 9.2.A.V1.17
Ø60 M12 100 9.2.A.V1.18
Ø60 M16 50 9.2.A.V1.19
Ø60 M16 100 9.2.A.V1.20
Ø60 M16 50 9.2.A.V1.21
Ø60 M20 100 9.2.A.V1.22
Ø80 M10 50 9.2.A.V1.23
Ø80 M10 100 9.2.A.V1.24
Ø80 M12 50 9.2.A.V1.25
Ø80 M12 100 9.2.A.V1.26
Ø80 M16 50 9.2.A.V1.27
Ø80 M16 100 9.2.A.V1.28
Ø80 M16 150 9.2.A.V1.29
Ø80 M16 200 9.2.A.V1.30
Ø80 M20 50 9.2.A.V1.31
Ø80 M20 100 9.2.A.V1.32
Ø80 M20 150 9.2.A.V1.33
Ø80 M20 200 9.2.A.V1.34
Ø110 M10 50 9.2.A.V1.35
Ø110 M10 100 9.2.A.V1.36
Ø110 M12 50 9.2.A.V1.37
Ø110 M12 100 9.2.A.V1.38
Ø110 M16 50 9.2.A.V1.39
Ø110 M16 100 9.2.A.V1.40
Ø110 M16 150 9.2.A.V1.41
Ø110 M16 200 9.2.A.V1.42
Ø110 M20 50 9.2.A.V1.43
Ø110 M20 100 9.2.A.V1.44
Ø110 M20 150 9.2.A.V1.45
Ø110 M20 200 9.2.A.V1.46

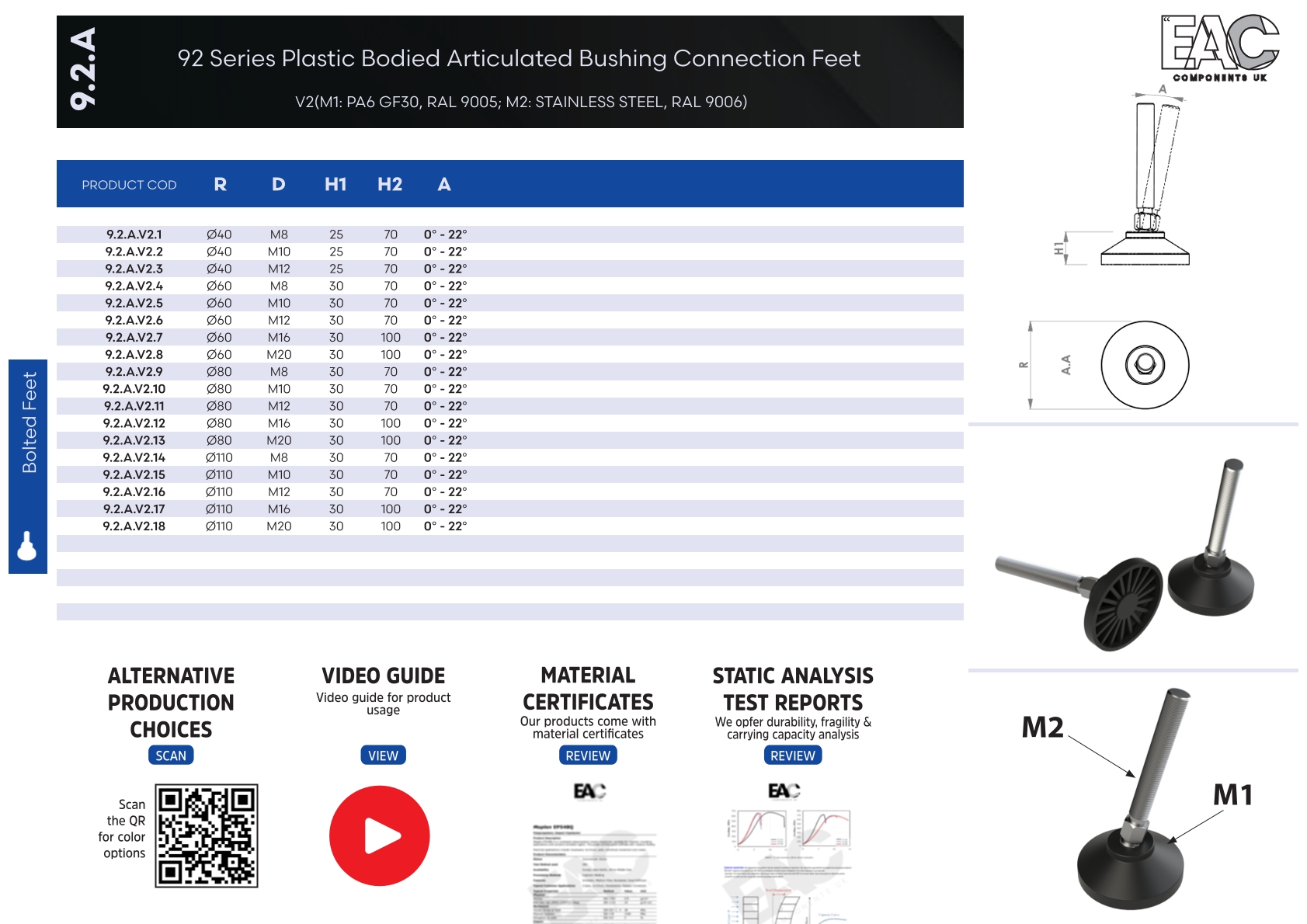

9.2.A.V2 - PA6 GF30 - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø80 M10 70 9.2.A.V2.10
Ø40 M10 70 9.2.A.V2.2
Ø40 M12 70 9.2.A.V2.3
Ø60 M8 70 9.2.A.V2.4
Ø60 M10 70 9.2.A.V2.5
Ø60 M12 70 9.2.A.V2.6
Ø60 M16 100 9.2.A.V2.7
Ø40 M8 70 9.2.A.V2.1
Ø80 M8 70 9.2.A.V2.9
Ø110 M20 100 9.2.A.V2.18
Ø80 M12 70 9.2.A.V2.11
Ø80 M16 100 9.2.A.V2.12
Ø80 M20 100 9.2.A.V2.13
Ø110 M8 70 9.2.A.V2.14
Ø110 M10 70 9.2.A.V2.15
Ø110 M12 70 9.2.A.V2.16
Ø110 M16 100 9.2.A.V2.17
Ø60 M20 100 9.2.A.V2.8
9.2.B.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø60 M10 50 9.2.B.V1.1
Ø60 M10 100 9.2.B.V1.2
Ø60 M12 50 9.2.B.V1.3
Ø60 M12 100 9.2.B.V1.4
Ø60 M16 50 9.2.B.V1.5
Ø60 M16 100 9.2.B.V1.6
Ø60 M16 150 9.2.B.V1.7
Ø60 M16 200 9.2.B.V1.8
Ø60 M20 50 9.2.B.V1.9
Ø60 M20 100 9.2.B.V1.10
Ø60 M20 150 9.2.B.V1.11
Ø60 M20 200 9.2.B.V1.12
Ø80 M10 50 9.2.B.V1.13
Ø80 M10 100 9.2.B.V1.14
Ø80 M12 50 9.2.B.V1.15
Ø80 M12 100 9.2.B.V1.16
Ø80 M16 50 9.2.B.V1.17
Ø80 M16 100 9.2.B.V1.18
Ø80 M16 150 9.2.B.V1.19
Ø80 M16 200 9.2.B.V1.20
Ø80 M20 50 9.2.B.V1.21
Ø80 M20 100 9.2.B.V1.22
Ø80 M20 150 9.2.B.V1.23
Ø80 M20 200 9.2.B.V1.24
Ø110 M10 50 9.2.B.V1.25
Ø110 M10 100 9.2.B.V1.26
Ø110 M12 50 9.2.B.V1.27
Ø110 M12 100 9.2.B.V1.28
Ø110 M16 50 9.2.B.V1.29
Ø110 M16 100 9.2.B.V1.30
Ø110 M16 150 9.2.B.V1.31
Ø110 M16 200 9.2.B.V1.32
Ø110 M20 50 9.2.B.V1.33
Ø110 M20 100 9.2.B.V1.34
Ø110 M20 150 9.2.B.V1.35
Ø110 M20 200 9.2.B.V1.36
9.2.B.V2 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø60 M20 50 9.2.B.V2.9
Ø60 M10 50 9.2.B.V2.1
Ø80 M12 100 9.2.B.V2.16
Ø80 M12 50 9.2.B.V2.15
Ø80 M10 100 9.2.B.V2.14
Ø80 M10 50 9.2.B.V2.13
Ø60 M20 200 9.2.B.V2.12
Ø80 M16 100 9.2.B.V2.18
Ø60 M20 100 9.2.B.V2.10
Ø80 M16 150 9.2.B.V2.19
Ø60 M16 200 9.2.B.V2.8
Ø60 M16 150 9.2.B.V2.7
Ø60 M16 100 9.2.B.V2.6
Ø60 M16 50 9.2.B.V2.5
Ø60 M12 100 9.2.B.V2.4
Ø60 M12 50 9.2.B.V2.3
Ø60 M10 100 9.2.B.V2.2
Ø60 M20 150 9.2.B.V2.11
Ø110 M12 50 9.2.B.V2.27
Ø110 M20 150 9.2.B.V2.35
Ø110 M20 100 9.2.B.V2.34
Ø110 M20 50 9.2.B.V2.33
Ø110 M16 200 9.2.B.V2.32
Ø110 M16 150 9.2.B.V2.31
Ø110 M16 100 9.2.B.V2.30
Ø80 M16 50 9.2.B.V2.17
Ø110 M12 100 9.2.B.V2.28
Ø110 M20 200 9.2.B.V2.36
Ø110 M10 100 9.2.B.V2.26
Ø110 M10 50 9.2.B.V2.25
Ø80 M20 200 9.2.B.V2.24
Ø80 M20 150 9.2.B.V2.23
Ø80 M20 100 9.2.B.V2.22
Ø80 M20 50 9.2.B.V2.21
Ø80 M16 200 9.2.B.V2.20
Ø110 M16 50 9.2.B.V2.29

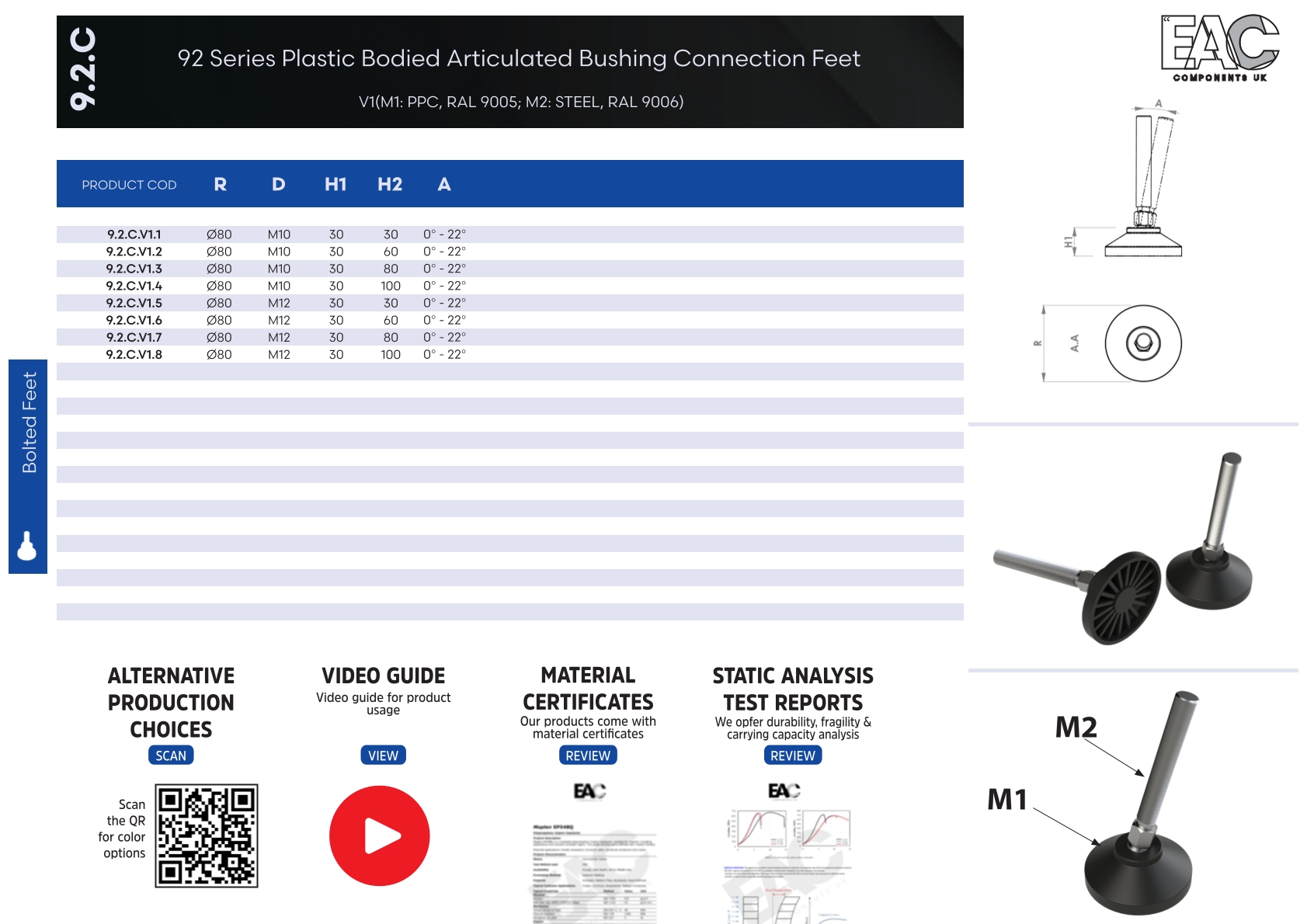

9.2.C.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø80 M10 30 9.2.C.V1.1
Ø80 M10 60 9.2.C.V1.2
Ø80 M10 80 9.2.C.V1.3
Ø80 M10 100 9.2.C.V1.4
Ø80 M12 30 9.2.C.V1.5
Ø80 M12 60 9.2.C.V1.6
Ø80 M12 80 9.2.C.V1.7
Ø80 M12 100 9.2.C.V1.8
9.2.D.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø40 M8 30 9.2.D.V1.1
Ø40 M10 30 9.2.D.V1.2
Ø40 M12 30 9.2.D.V1.3
Ø50 M8 30 9.2.D.V1.4
Ø50 M10 30 9.2.D.V1.5
Ø50 M12 30 9.2.D.V1.6
Ø80 M8 30 9.2.D.V1.7
Ø80 M10 30 9.2.D.V1.8
Ø80 M12 30 9.2.D.V1.9
Ø100 M8 40 9.2.D.V1.10
Ø100 M10 40 9.2.D.V1.11
Ø100 M12 40 9.2.D.V1.12
9.2.H.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø60 M16 Bolt Length (H) 9.2.H.V1.1
Ø60 M16 Bolt Length (H) 9.2.H.V1.2
Ø60 M16 Bolt Length (H) 9.2.H.V1.3
Ø60 M20 Bolt Length (H) 9.2.H.V1.4
Ø60 M20 Bolt Length (H) 9.2.H.V1.5
Ø80 M16 Bolt Length (H) 9.2.H.V1.6
Ø80 M16 Bolt Length (H) 9.2.H.V1.7
Ø80 M16 Bolt Length (H) 9.2.H.V1.8
Ø80 M20 Bolt Length (H) 9.2.H.V1.9
Ø80 M20 Bolt Length (H) 9.2.H.V1.10
Ø100 M16 Bolt Length (H) 9.2.H.V1.11
Ø100 M16 Bolt Length (H) 9.2.H.V1.12
Ø100 M16 Bolt Length (H) 9.2.H.V1.13
Ø100 M20 Bolt Length (H) 9.2.H.V1.14
Ø100 M20 Bolt Length (H) 9.2.H.V1.15
Ø110 M16 Bolt Length (H) 9.2.H.V1.16
Ø110 M16 Bolt Length (H) 9.2.H.V1.17
Ø110 M16 Bolt Length (H) 9.2.H.V1.18
Ø110 M20 Bolt Length (H) 9.2.H.V1.19
Ø110 M20 Bolt Length (H) 9.2.H.V1.20
Technical Drawing
