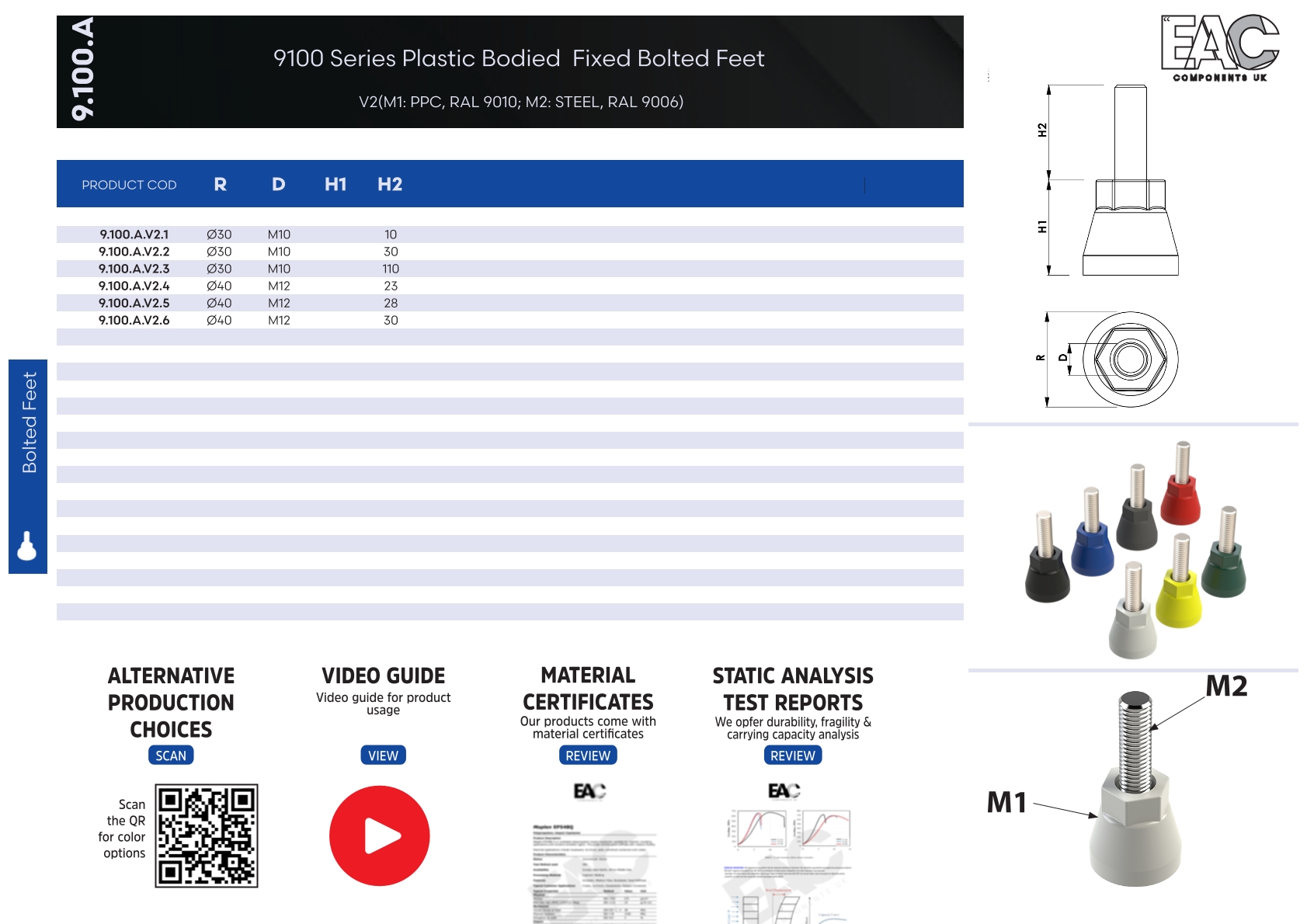

9100 Series Plastic Bodied Fixed Bolted Feet

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 9.100
Material and Color Options (V)
9.100.A.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø30 M10 10 9.100.A.V1.1
Ø30 M10 30 9.100.A.V1.2
Ø30 M10 110 9.100.A.V1.3
Ø40 M12 23 9.100.A.V1.4
Ø40 M12 28 9.100.A.V1.5
Ø40 M12 30 9.100.A.V1.6
9.100.A.V2 - PPC - RAL 9010
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø40 M12 30 9.100.A.V2.6
Ø40 M12 28 9.100.A.V2.5
Ø40 M12 23 9.100.A.V2.4
Ø30 M10 110 9.100.A.V2.3
Ø30 M10 30 9.100.A.V2.2
Ø30 M10 10 9.100.A.V2.1
Technical Drawing
