9102 Series Plastic Bodied , Fixable Fixed Bolted Feet

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 9.102
Material and Color Options (V)
9.102.A.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø13 M4 15 9.102.A.V1.1
9.102.A.V10 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø20 M5 30 9.102.A.V1.12
9.102.A.V11 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø20 M5 35 9.102.A.V1.13
9.102.A.V12 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø20 M5 40 9.102.A.V1.14
9.102.A.V13 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø20 M8 15 9.102.A.V1.3
9.102.A.V14 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø20 M8 20 9.102.A.V1.4
9.102.A.V15 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø20 M8 25 9.102.A.V1.15
9.102.A.V16 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø20 M8 30 9.102.A.V1.16
9.102.A.V17 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø20 M8 35 9.102.A.V1.17
9.102.A.V18 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø20 M8 40 9.102.A.V1.18
9.102.A.V2 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø13 M4 20 9.102.A.V1.5
9.102.A.V3 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø13 M4 25 9.102.A.V1.6
9.102.A.V4 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø13 M4 30 9.102.A.V1.7
9.102.A.V5 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø13 M4 35 9.102.A.V1.8
9.102.A.V6 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø13 M4 40 9.102.A.V1.9
9.102.A.V7 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø20 M5 15 9.102.A.V1.2
9.102.A.V8 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø20 M5 20 9.102.A.V1.10
9.102.A.V9 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø20 M5 25 9.102.A.V1.11

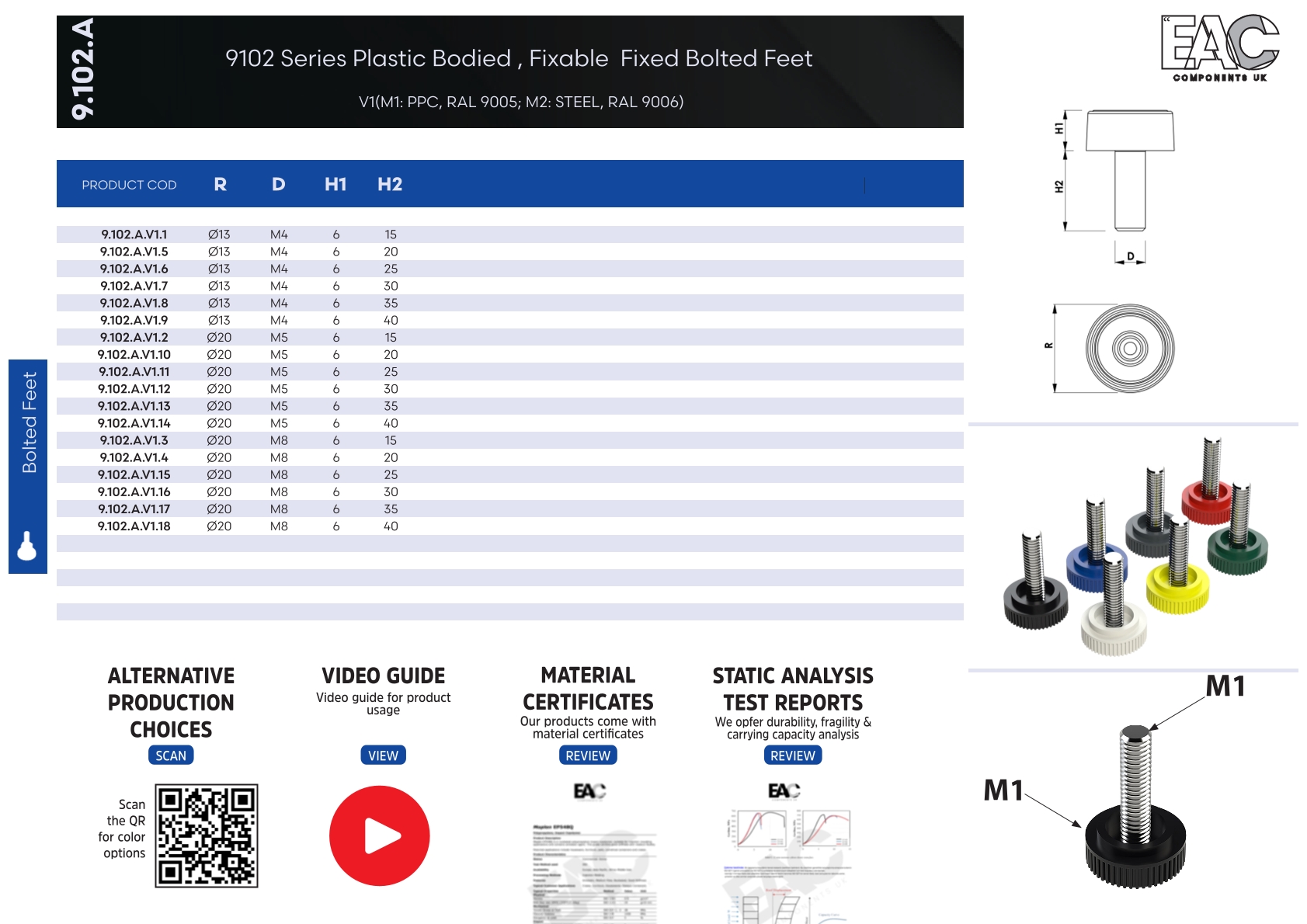

Technical Drawing
