9104 Series Plastic Bodied TPE Coated Fixed Bolted Feet

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 9.104
Material and Color Options (V)
9.104.A.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø17 M5 15 9.104.A.V1.1
Ø17 M6 15 9.104.A.V1.2
Ø17 M8 15 9.104.A.V1.3
Ø20 M5 15 9.104.A.V1.4
Ø20 M6 15 9.104.A.V1.5
Ø20 M8 15 9.104.A.V1.6
Ø25 M5 15 9.104.A.V1.7
Ø25 M6 15 9.104.A.V1.8
Ø25 M8 15 9.104.A.V1.9

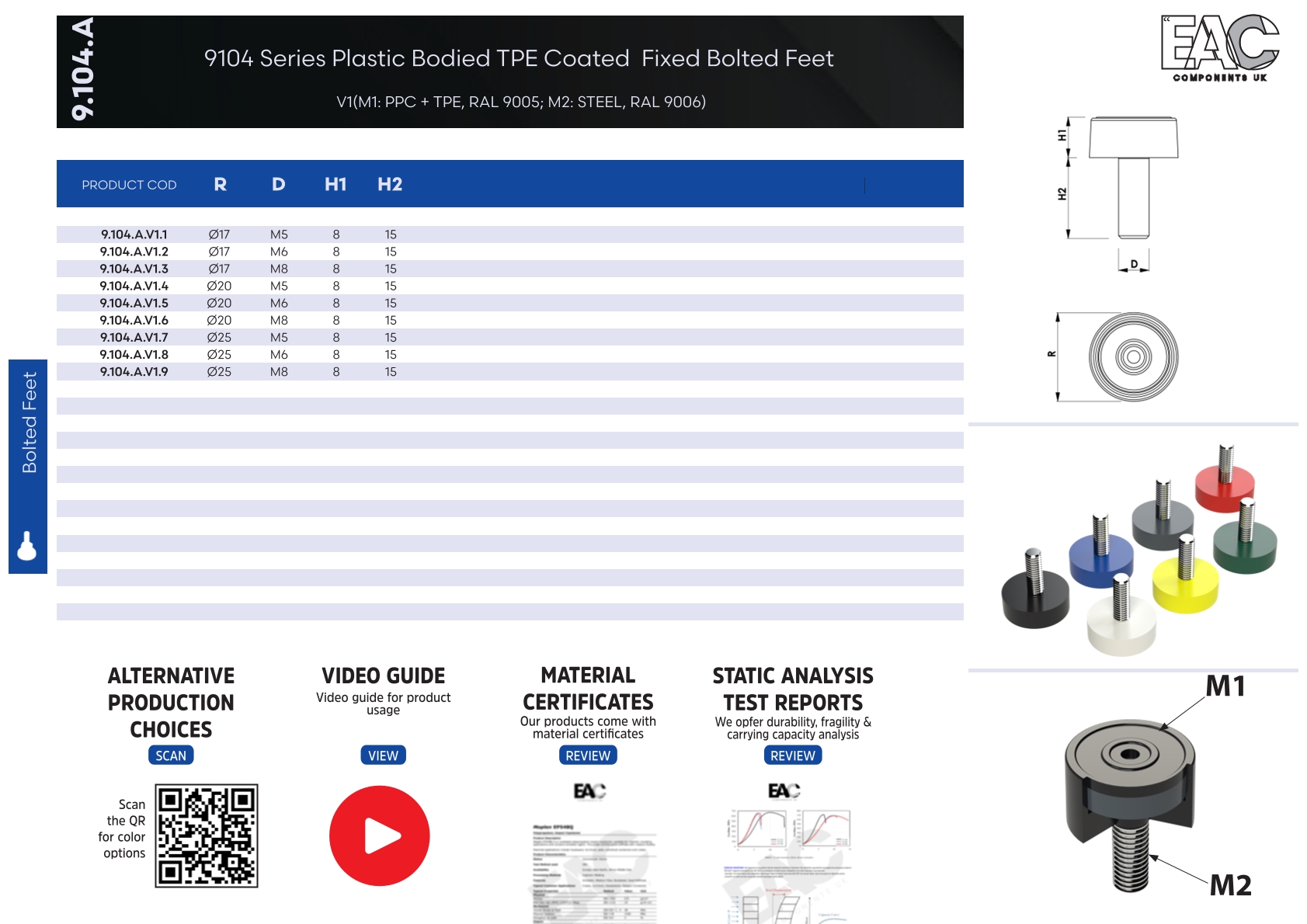

Technical Drawing
3D Modelling
3D Modelling

To access the product file, you can click on the "Download 3D Model" button below, fill out the form and send it.

Download 3D Model
Montage Video

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Technical Detail

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Raw Material Certificate

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Quality and Analysis Certificates

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Category Introduction

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
