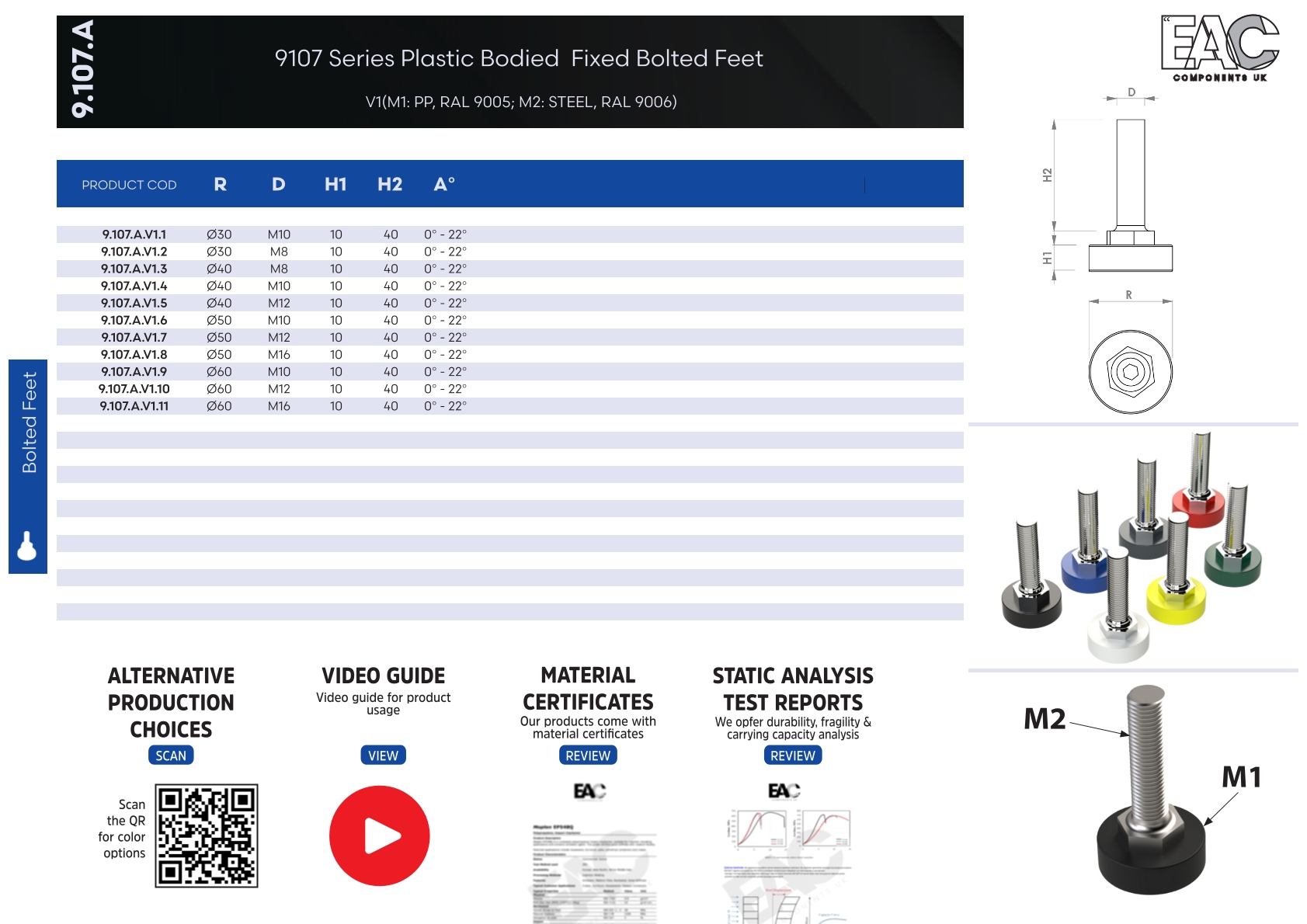

9107 Series Plastic Bodied Fixed Bolted Feet

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 9.107
Material and Color Options (V)
9.107.A.V1 - PP - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø30 M10 40 9.107.A.V1.1
Ø30 M8 40 9.107.A.V1.2
Ø40 M8 40 9.107.A.V1.3
Ø40 M10 40 9.107.A.V1.4
Ø40 M12 40 9.107.A.V1.5
Ø50 M10 40 9.107.A.V1.6
Ø50 M12 40 9.107.A.V1.7
Ø50 M16 40 9.107.A.V1.8
Ø60 M10 40 9.107.A.V1.9
Ø60 M12 40 9.107.A.V1.10
Ø60 M16 40 9.107.A.V1.11
Technical Drawing
