913 Series Metal Bodied Rubber Base Fixed Bolted Feet

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 9.13

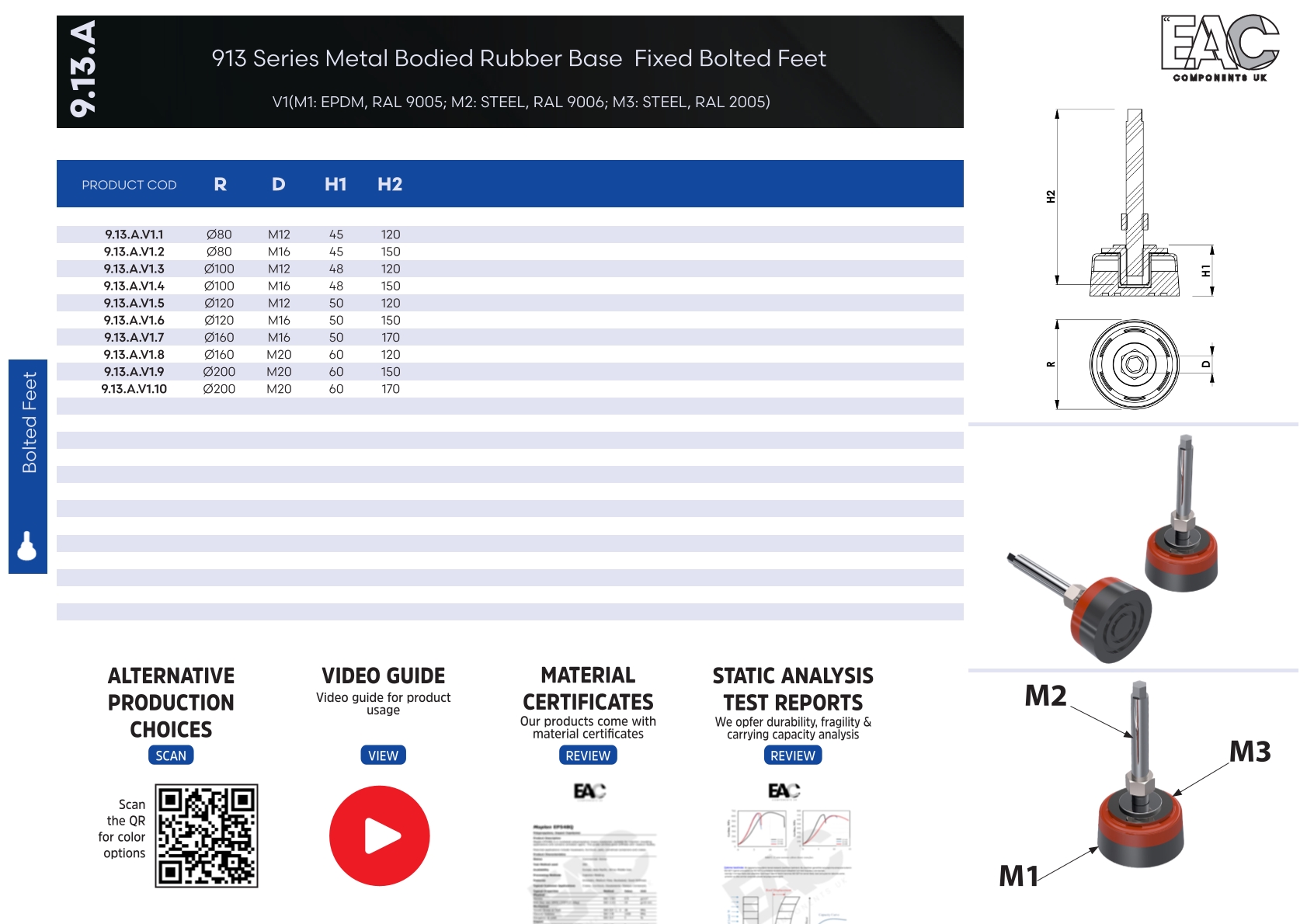

Material and Color Options (V)
9.13.A.V1 - EPDM - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø80 12 120 9.13.A.V1.1
Ø80 16 150 9.13.A.V1.2
Ø100 12 120 9.13.A.V1.3
Ø100 16 150 9.13.A.V1.4
Ø120 12 120 9.13.A.V1.5
Ø120 16 150 9.13.A.V1.6
Ø160 16 170 9.13.A.V1.7
Ø160 20 120 9.13.A.V1.8
Ø200 20 150 9.13.A.V1.9
Ø200 20 170 9.13.A.V1.10

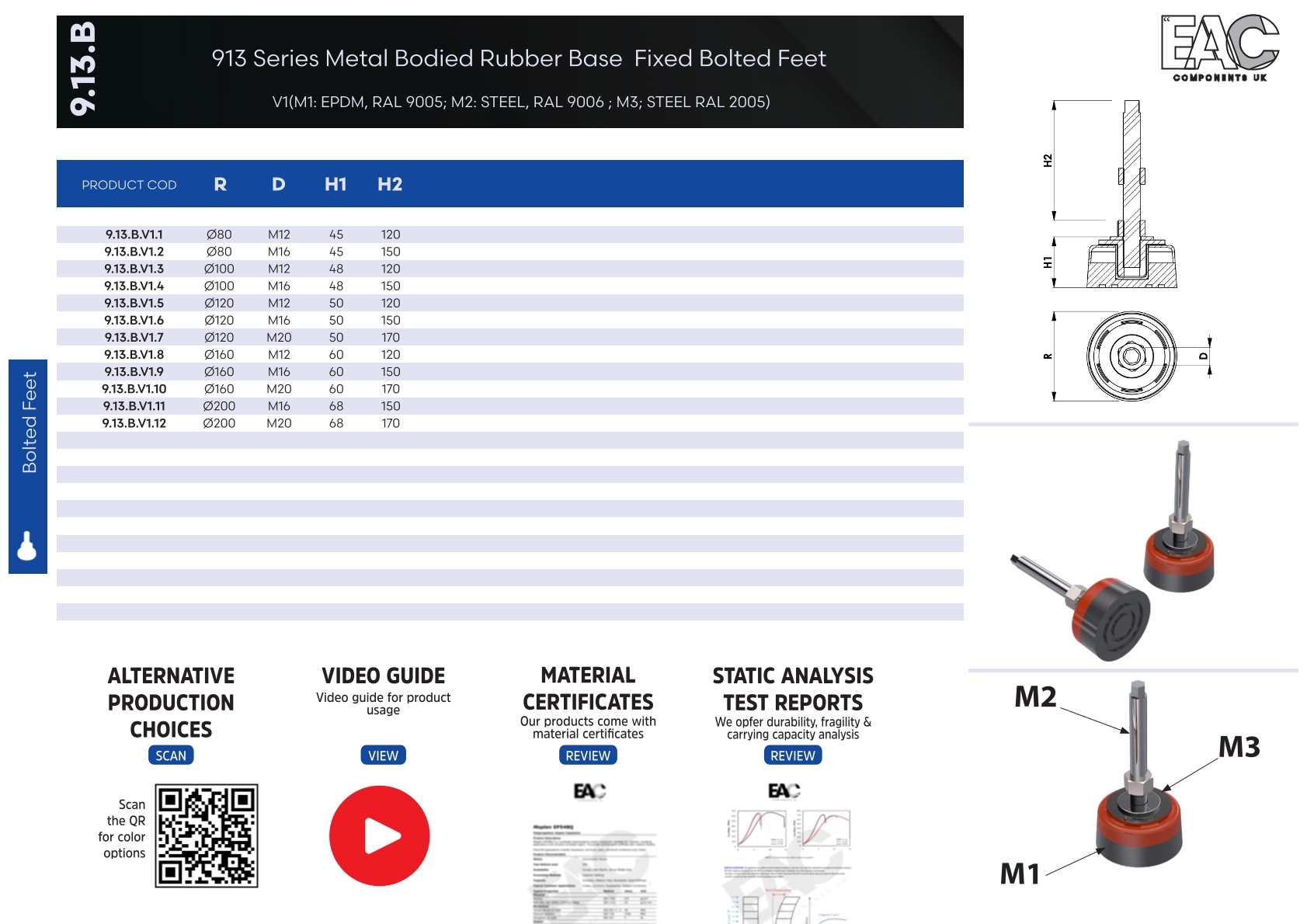

9.13.B.V1 - EPDM - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø80 M12 120 9.13.B.V1.1
Ø80 M16 150 9.13.B.V1.2
Ø100 M12 120 9.13.B.V1.3
Ø100 M16 150 9.13.B.V1.4
Ø120 M12 120 9.13.B.V1.5
Ø120 M16 150 9.13.B.V1.6
Ø120 M20 170 9.13.B.V1.7
Ø160 M12 120 9.13.B.V1.8
Ø160 M16 150 9.13.B.V1.9
Ø160 M20 170 9.13.B.V1.10
Ø200 M16 150 9.13.B.V1.11
Ø200 M20 170 9.13.B.V1.12
Technical Drawing
3D Modelling
3D Modelling

To access the product file, you can click on the "Download 3D Model" button below, fill out the form and send it.

Download 3D Model
Montage Video

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Technical Detail

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Raw Material Certificate

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Quality and Analysis Certificates

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Category Introduction

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
