917 Series Metal Bodied Rubber Base Fixed Bolted Feet

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 9.17
Material and Color Options (V)
9.17.A.V1 - TPE - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø40 M8 50 9.17.A.V1.1
Ø40 M10 50 9.17.A.V1.2
Ø40 M12 50 9.17.A.V1.3
Ø60 M10 70 9.17.A.V1.4
Ø60 M12 70 9.17.A.V1.5
Ø60 M16 70 9.17.A.V1.6
Ø80 M12 100 9.17.A.V1.7
Ø80 M16 100 9.17.A.V1.8
Ø80 M20 100 9.17.A.V1.9
Ø100 M12 100 9.17.A.V1.10
Ø100 M16 100 9.17.A.V1.11
Ø100 M20 100 9.17.A.V1.12
Ø120 M12 100 9.17.A.V1.13
Ø120 M16 100 9.17.A.V1.14
Ø120 M20 100 9.17.A.V1.15
Ø120 M20 150 9.17.A.V1.16
Ø160 M12 100 9.17.A.V1.17
Ø160 M16 100 9.17.A.V1.18
Ø160 M20 100 9.17.A.V1.19
Ø160 M20 150 9.17.A.V1.20
Ø200 M16 100 9.17.A.V1.21
Ø200 M20 100 9.17.A.V1.22
Ø200 M20 150 9.17.A.V1.23

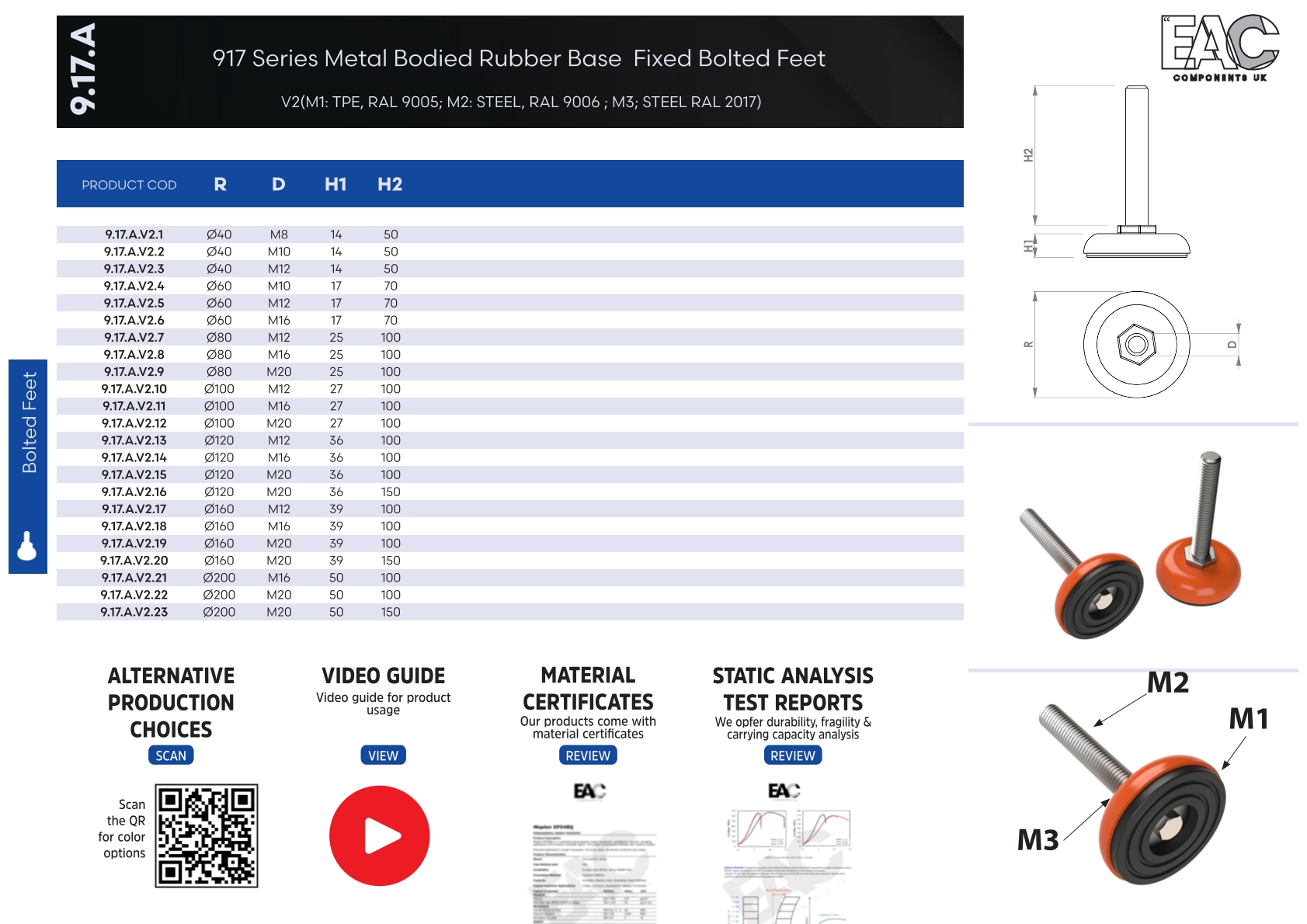

9.17.A.V2 - TPE - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø120 M12 100 9.17.A.V2.13
Ø40 M10 50 9.17.A.V2.2
Ø40 M12 50 9.17.A.V2.3
Ø60 M10 70 9.17.A.V2.4
Ø60 M12 70 9.17.A.V2.5
Ø60 M16 70 9.17.A.V2.6
Ø80 M12 100 9.17.A.V2.7
Ø80 M16 100 9.17.A.V2.8
Ø80 M20 100 9.17.A.V2.9
Ø100 M12 100 9.17.A.V2.10
Ø40 M8 50 9.17.A.V2.1
Ø100 M20 100 9.17.A.V2.12
Ø200 M20 150 9.17.A.V2.23
Ø120 M16 100 9.17.A.V2.14
Ø120 M20 100 9.17.A.V2.15
Ø120 M20 150 9.17.A.V2.16
Ø160 M12 100 9.17.A.V2.17
Ø160 M16 100 9.17.A.V2.18
Ø160 M20 100 9.17.A.V2.19
Ø160 M20 150 9.17.A.V2.20
Ø200 M16 100 9.17.A.V2.21
Ø200 M20 100 9.17.A.V2.22
Ø100 M16 100 9.17.A.V2.11

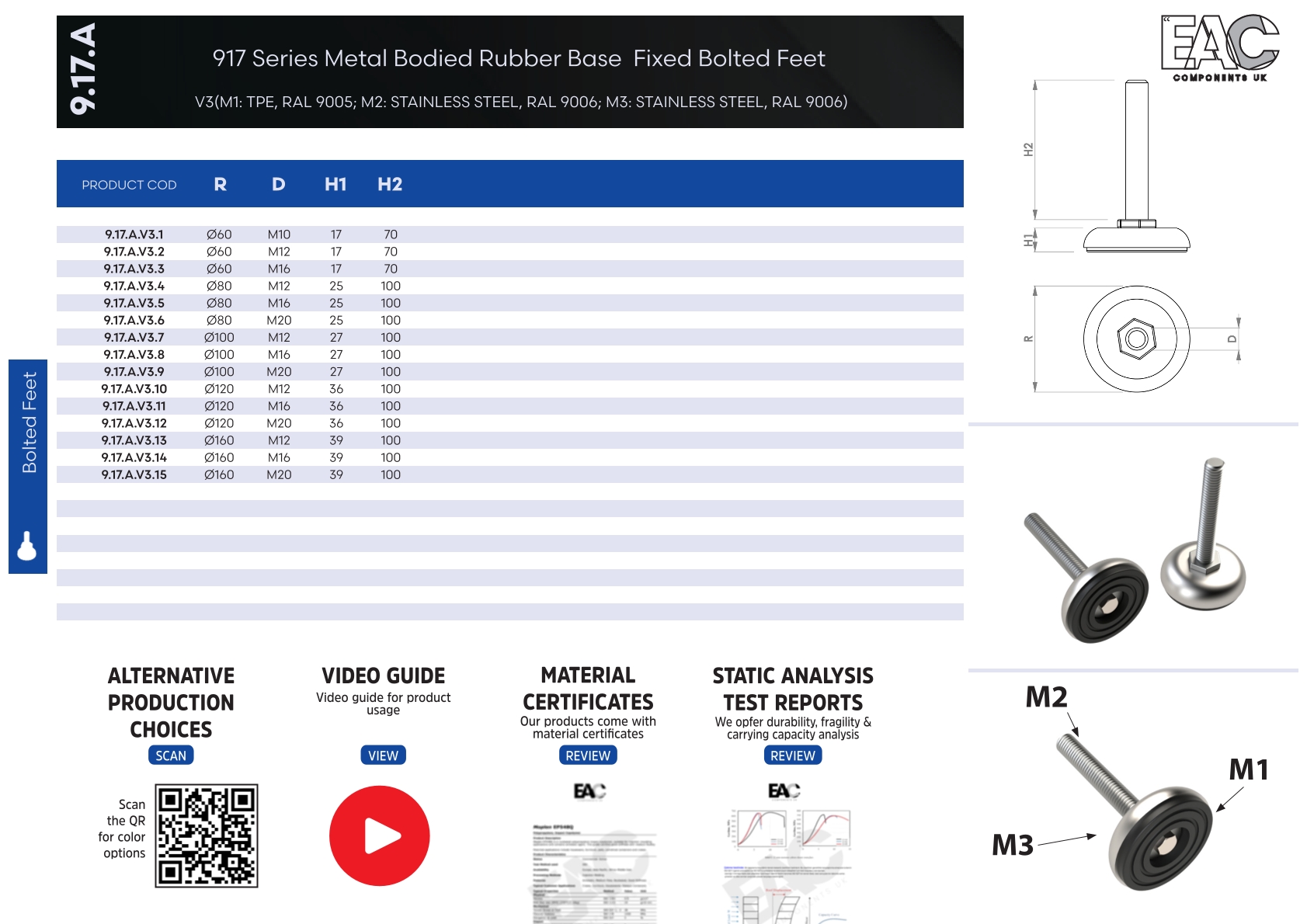

9.17.A.V3 - TPE - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø160 M20 100 9.17.A.V3.15
Ø160 M16 100 9.17.A.V3.14
Ø160 M12 100 9.17.A.V3.13
Ø120 M20 100 9.17.A.V3.12
Ø120 M16 100 9.17.A.V3.11
Ø120 M12 100 9.17.A.V3.10
Ø100 M20 100 9.17.A.V3.9
Ø100 M16 100 9.17.A.V3.8
Ø100 M12 100 9.17.A.V3.7
Ø80 M20 100 9.17.A.V3.6
Ø80 M16 100 9.17.A.V3.5
Ø80 M12 100 9.17.A.V3.4
Ø60 M16 70 9.17.A.V3.3
Ø60 M12 70 9.17.A.V3.2
Ø60 M10 70 9.17.A.V3.1

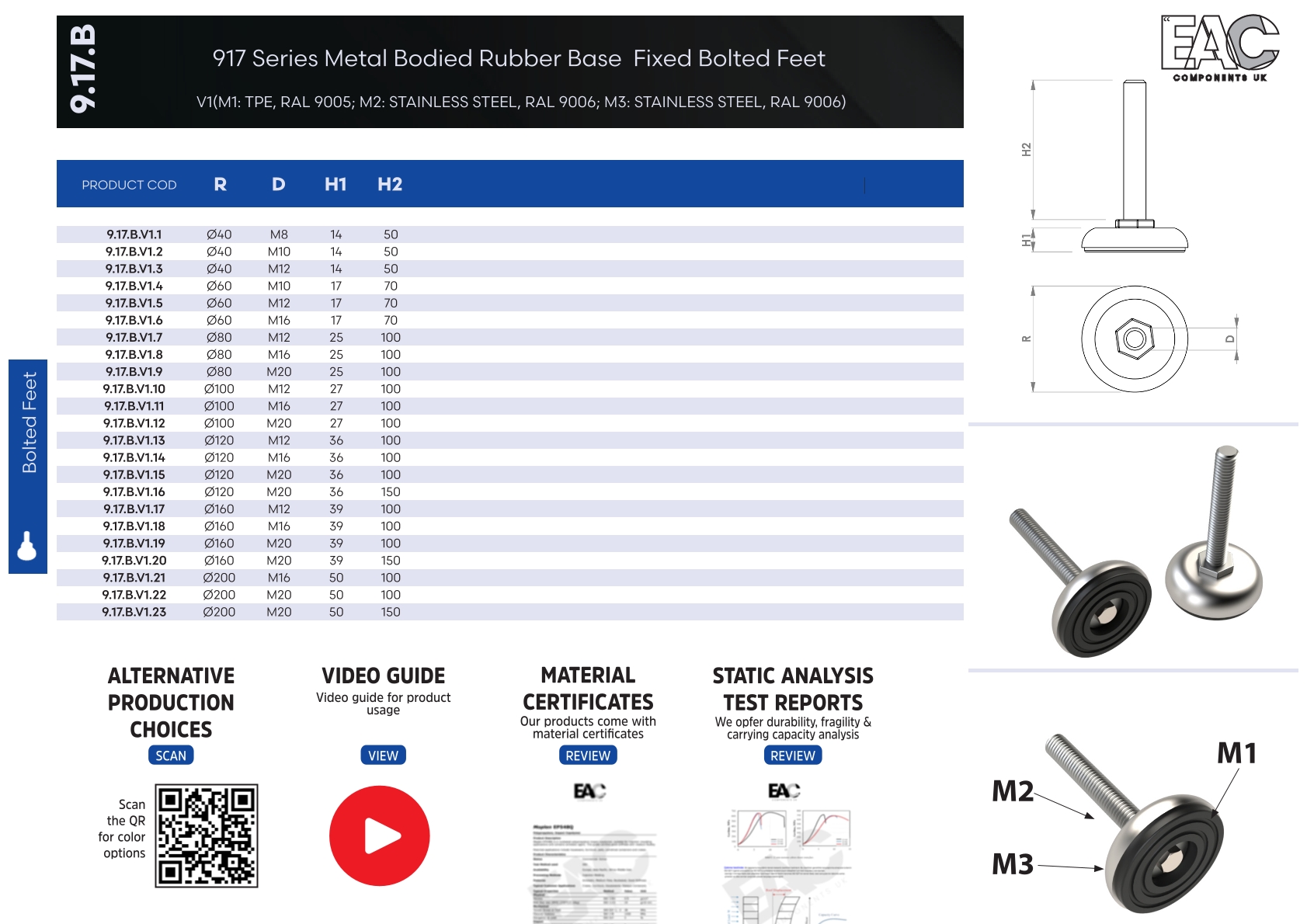

9.17.B.V1 - TPE - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø40 M8 50 9.17.B.V1.1
Ø40 M10 50 9.17.B.V1.2
Ø40 M12 50 9.17.B.V1.3
Ø60 M10 70 9.17.B.V1.4
Ø60 M12 70 9.17.B.V1.5
Ø60 M16 70 9.17.B.V1.6
Ø80 M12 100 9.17.B.V1.7
Ø80 M16 100 9.17.B.V1.8
Ø80 M20 100 9.17.B.V1.9
Ø100 M12 100 9.17.B.V1.10
Ø100 M16 100 9.17.B.V1.11
Ø100 M20 100 9.17.B.V1.12
Ø120 M12 100 9.17.B.V1.13
Ø120 M16 100 9.17.B.V1.14
Ø120 M20 100 9.17.B.V1.15
Ø120 M20 150 9.17.B.V1.16
Ø160 M12 100 9.17.B.V1.17
Ø160 M16 100 9.17.B.V1.18
Ø160 M20 100 9.17.B.V1.19
Ø160 M20 150 9.17.B.V1.20
Ø200 M16 100 9.17.B.V1.21
Ø200 M20 100 9.17.B.V1.22
Ø200 M20 150 9.17.B.V1.23
Technical Drawing
3D Modelling
3D Modelling

To access the product file, you can click on the "Download 3D Model" button below, fill out the form and send it.

Download 3D Model
Montage Video

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Technical Detail

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Raw Material Certificate

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Quality and Analysis Certificates

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Category Introduction

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
