921 Series Metal Bodied Rubber Base Fixed Bush Connection Feet

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 9.21
Material and Color Options (V)

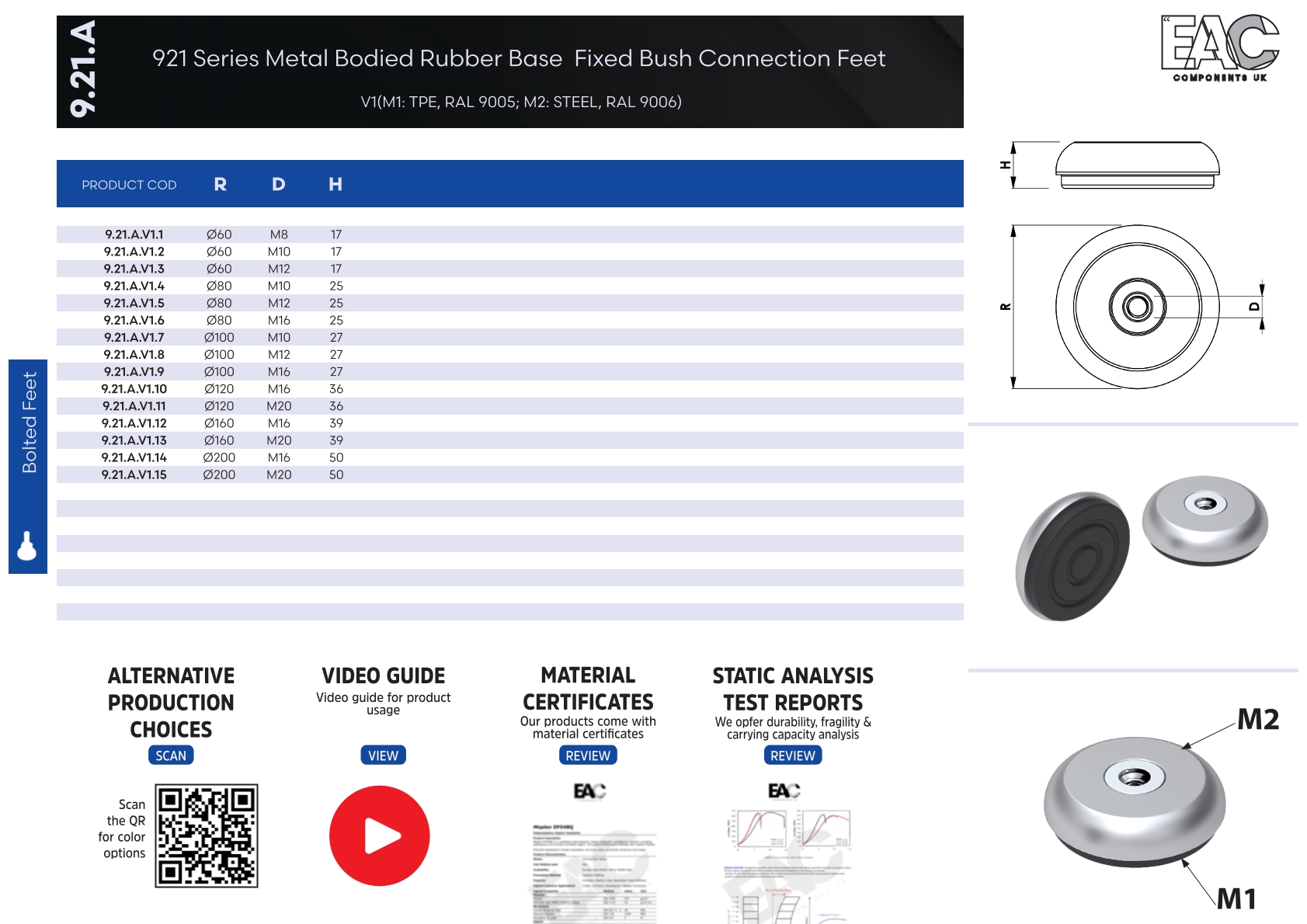

9.21.A.V1 - TPE - RAL 9005
Diameter (Ø) Nut Metric (D) Heightt (H)
Ø60 M8 Heightt (H) 9.21.A.V1.1
Ø60 M10 Heightt (H) 9.21.A.V1.2
Ø60 M12 Heightt (H) 9.21.A.V1.3
Ø80 M10 Heightt (H) 9.21.A.V1.4
Ø80 M12 Heightt (H) 9.21.A.V1.5
Ø80 M16 Heightt (H) 9.21.A.V1.6
Ø100 M10 Heightt (H) 9.21.A.V1.7
Ø100 M12 Heightt (H) 9.21.A.V1.8
Ø100 M16 Heightt (H) 9.21.A.V1.9
Ø120 M16 Heightt (H) 9.21.A.V1.10
Ø120 M20 Heightt (H) 9.21.A.V1.11
Ø160 M16 Heightt (H) 9.21.A.V1.12
Ø160 M20 Heightt (H) 9.21.A.V1.13
Ø200 M16 Heightt (H) 9.21.A.V1.14
Ø200 M20 Heightt (H) 9.21.A.V1.15

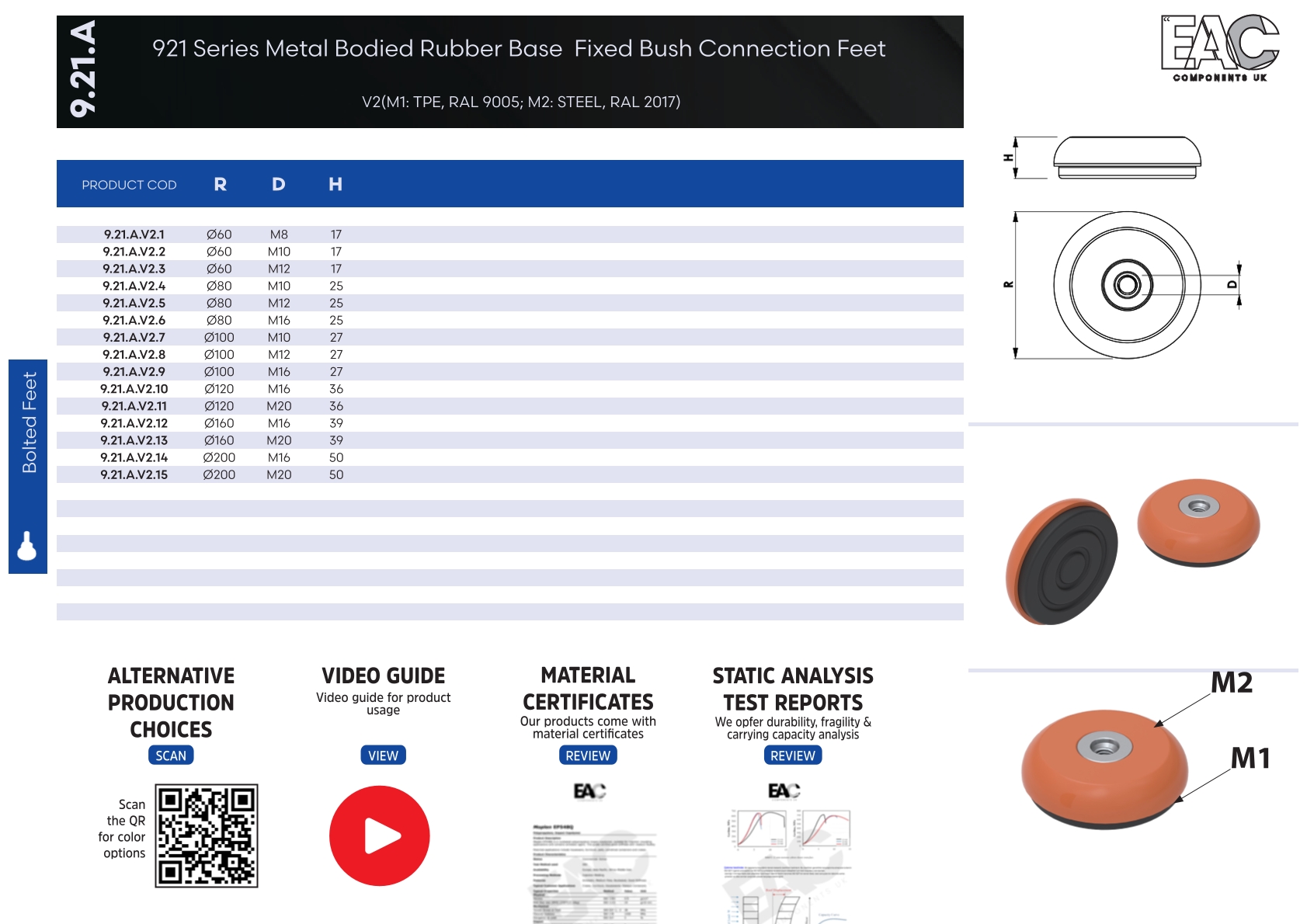

9.21.A.V2 - TPE - RAL 9005
Diameter (Ø) Nut Metric (D) Heightt (H)
Ø200 M20 Heightt (H) 9.21.A.V2.15
Ø200 M16 Heightt (H) 9.21.A.V2.14
Ø160 M20 Heightt (H) 9.21.A.V2.13
Ø160 M16 Heightt (H) 9.21.A.V2.12
Ø120 M20 Heightt (H) 9.21.A.V2.11
Ø120 M16 Heightt (H) 9.21.A.V2.10
Ø100 M16 Heightt (H) 9.21.A.V2.9
Ø100 M12 Heightt (H) 9.21.A.V2.8
Ø100 M10 Heightt (H) 9.21.A.V2.7
Ø80 M16 Heightt (H) 9.21.A.V2.6
Ø80 M12 Heightt (H) 9.21.A.V2.5
Ø80 M10 Heightt (H) 9.21.A.V2.4
Ø60 M12 Heightt (H) 9.21.A.V2.3
Ø60 M10 Heightt (H) 9.21.A.V2.2
Ø60 M8 Heightt (H) 9.21.A.V2.1

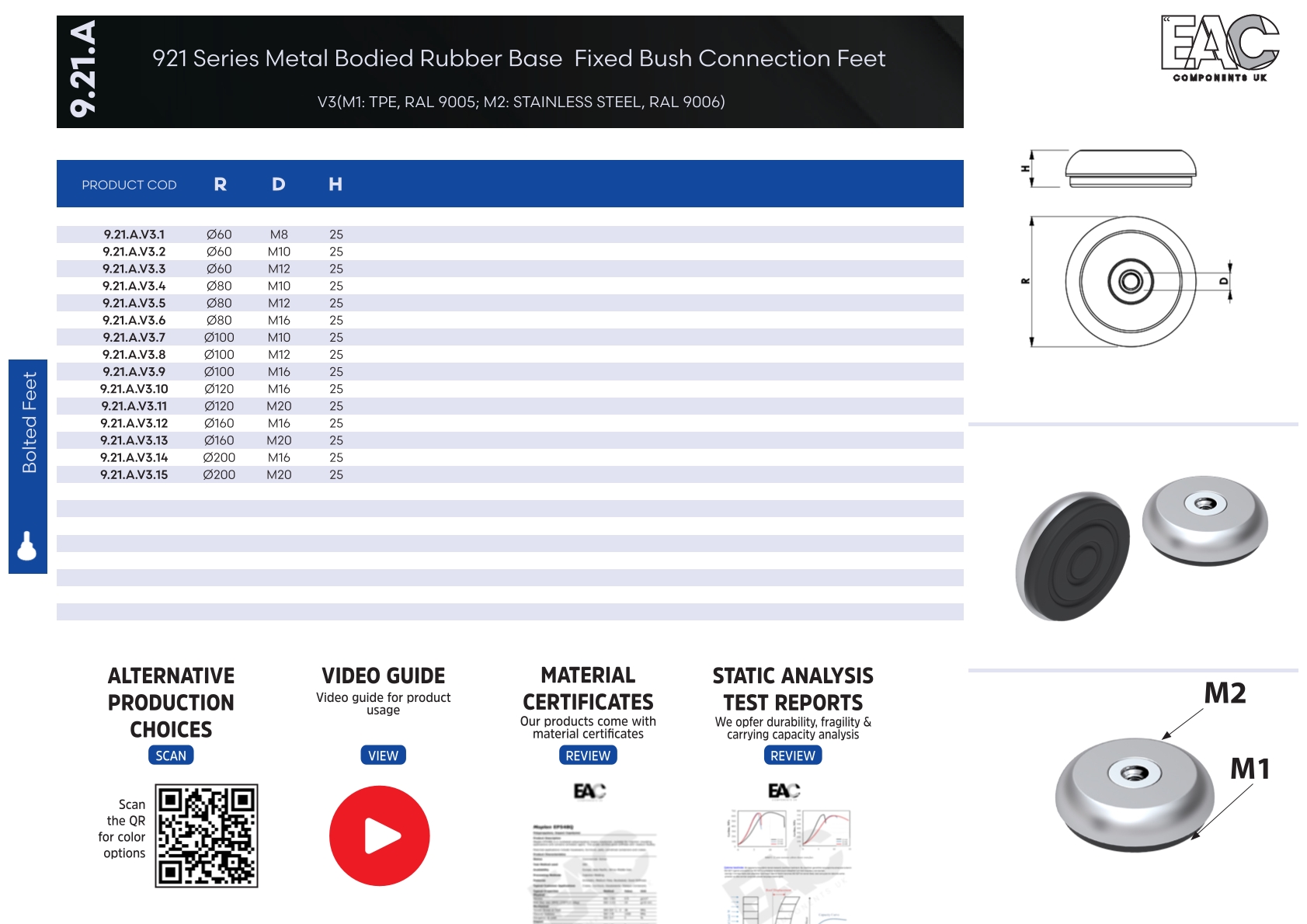

9.21.A.V3 - TPE - RAL 9005
Diameter (Ø) Nut Metric (D) Heightt (H)
Ø200 M20 Heightt (H) 9.21.A.V3.15
Ø200 M16 Heightt (H) 9.21.A.V3.14
Ø160 M20 Heightt (H) 9.21.A.V3.13
Ø160 M16 Heightt (H) 9.21.A.V3.12
Ø120 M20 Heightt (H) 9.21.A.V3.11
Ø120 M16 Heightt (H) 9.21.A.V3.10
Ø100 M16 Heightt (H) 9.21.A.V3.9
Ø100 M12 Heightt (H) 9.21.A.V3.8
Ø100 M10 Heightt (H) 9.21.A.V3.7
Ø80 M16 Heightt (H) 9.21.A.V3.6
Ø80 M12 Heightt (H) 9.21.A.V3.5
Ø80 M10 Heightt (H) 9.21.A.V3.4
Ø60 M12 Heightt (H) 9.21.A.V3.3
Ø60 M10 Heightt (H) 9.21.A.V3.2
Ø60 M8 Heightt (H) 9.21.A.V3.1

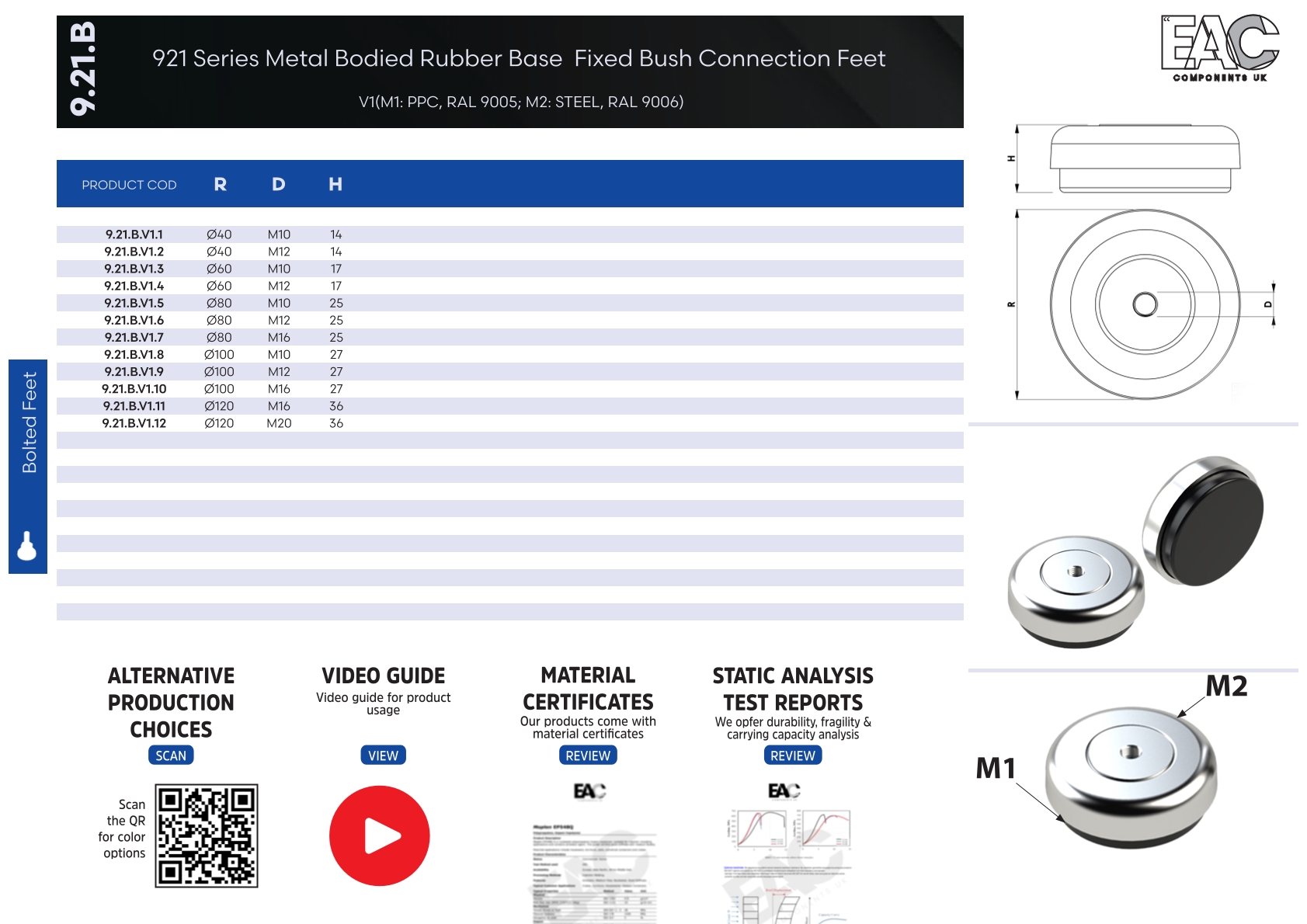

9.21.B.V1 - PPC - RAL 9005
Diameter (Ø) Nut Metric (D) Heightt (H)
Ø40 M10 Heightt (H) 9.21.B.V1.1
Ø40 M12 Heightt (H) 9.21.B.V1.2
Ø60 M10 Heightt (H) 9.21.B.V1.3
Ø60 M12 Heightt (H) 9.21.B.V1.4
Ø80 M10 Heightt (H) 9.21.B.V1.5
Ø80 M12 Heightt (H) 9.21.B.V1.6
Ø80 M16 Heightt (H) 9.21.B.V1.7
Ø100 M10 Heightt (H) 9.21.B.V1.8
Ø100 M12 Heightt (H) 9.21.B.V1.9
Ø100 M16 Heightt (H) 9.21.B.V1.10
Ø120 M16 Heightt (H) 9.21.B.V1.11
Ø120 M20 Heightt (H) 9.21.B.V1.12

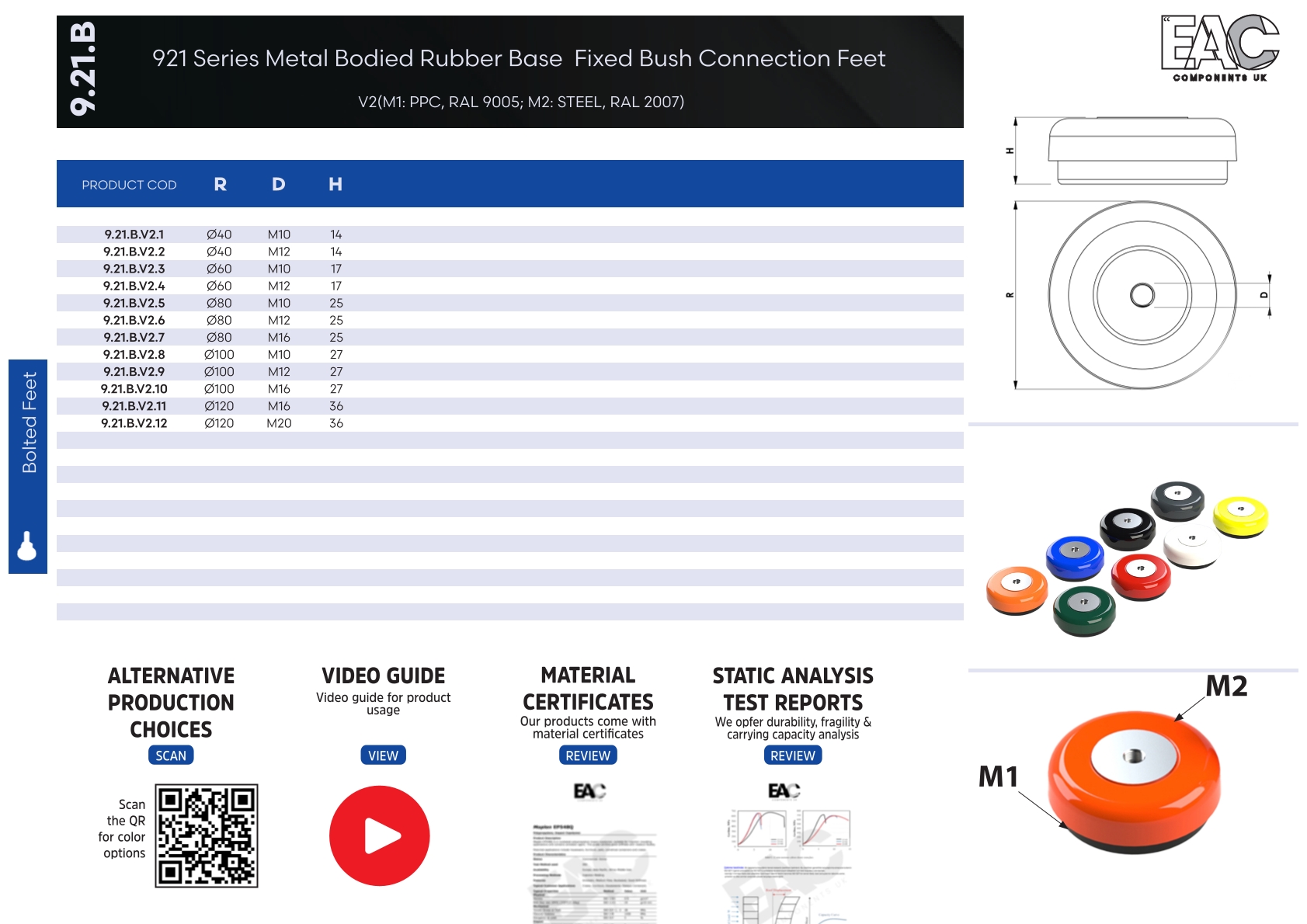

9.21.B.V2 - PPC - RAL 9005
Diameter (Ø) Nut Metric (D) Heightt (H)
Ø120 M20 Heightt (H) 9.21.B.V2.12
Ø120 M16 Heightt (H) 9.21.B.V2.11
Ø100 M16 Heightt (H) 9.21.B.V2.10
Ø100 M12 Heightt (H) 9.21.B.V2.9
Ø100 M10 Heightt (H) 9.21.B.V2.8
Ø80 M16 Heightt (H) 9.21.B.V2.7
Ø80 M12 Heightt (H) 9.21.B.V2.6
Ø80 M10 Heightt (H) 9.21.B.V2.5
Ø60 M12 Heightt (H) 9.21.B.V2.4
Ø60 M10 Heightt (H) 9.21.B.V2.3
Ø40 M12 Heightt (H) 9.21.B.V2.2
Ø40 M10 Heightt (H) 9.21.B.V2.1
Technical Drawing
3D Modelling
3D Modelling

To access the product file, you can click on the "Download 3D Model" button below, fill out the form and send it.

Download 3D Model
Montage Video

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Technical Detail

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Raw Material Certificate

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Quality and Analysis Certificates

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Category Introduction

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
