925 Series Metal Bodied Rubber Base Articulated Bolt Mounted Feet

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 9.25
Material and Color Options (V)

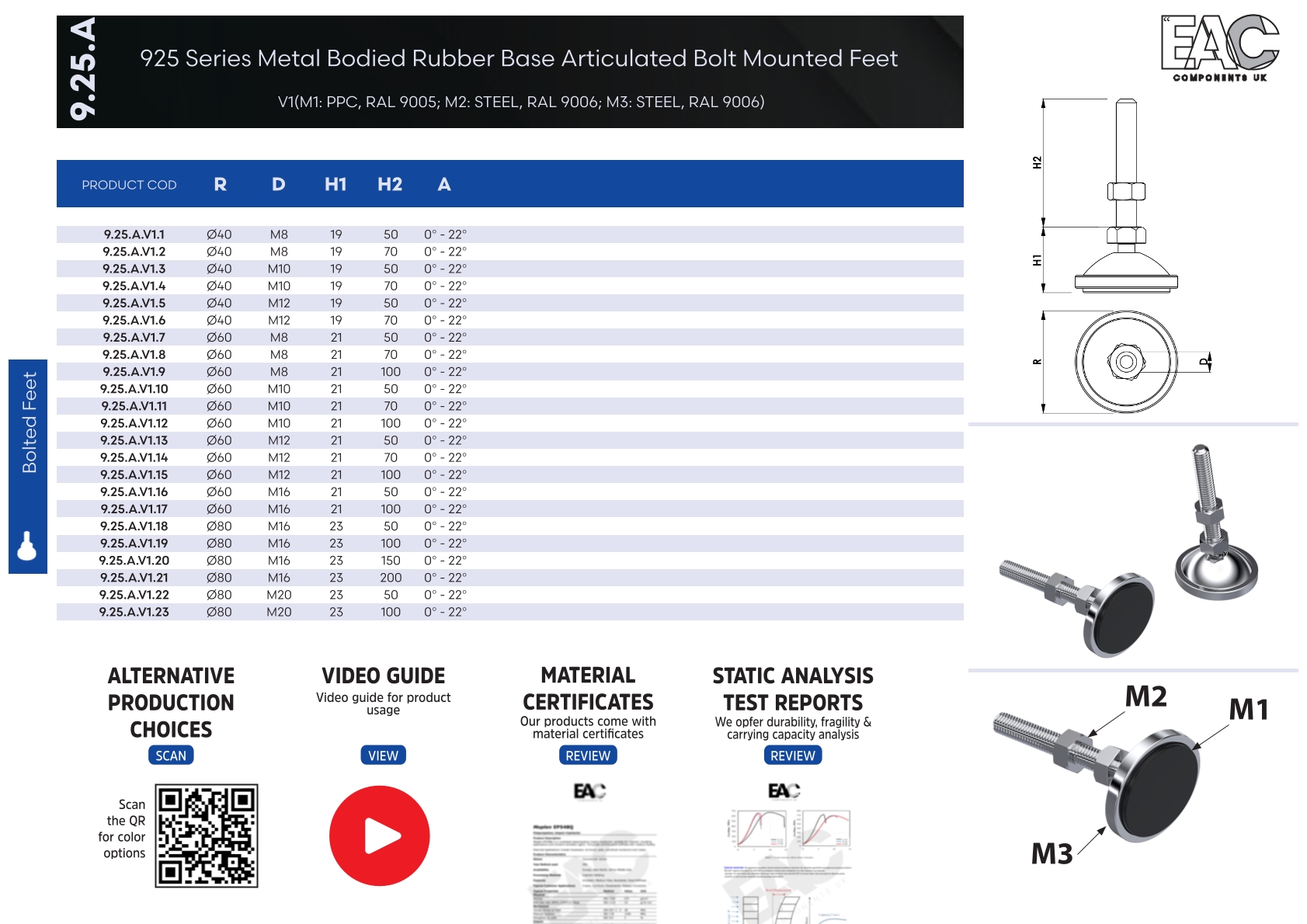

9.25.A.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø40 M8 50 9.25.A.V1.1
Ø40 M8 70 9.25.A.V1.2
Ø40 M10 50 9.25.A.V1.3
Ø40 M10 70 9.25.A.V1.4
Ø40 M12 50 9.25.A.V1.5
Ø40 M12 70 9.25.A.V1.6
Ø60 M8 50 9.25.A.V1.7
Ø60 M8 70 9.25.A.V1.8
Ø60 M8 100 9.25.A.V1.9
Ø60 M10 50 9.25.A.V1.10
Ø60 M10 70 9.25.A.V1.11
Ø60 M10 100 9.25.A.V1.12
Ø60 M12 50 9.25.A.V1.13
Ø60 M12 70 9.25.A.V1.14
Ø60 M12 100 9.25.A.V1.15
Ø60 M16 50 9.25.A.V1.16
Ø60 M16 100 9.25.A.V1.17
Ø80 M16 50 9.25.A.V1.18
Ø80 M16 100 9.25.A.V1.19
Ø80 M16 150 9.25.A.V1.20
Ø80 M16 200 9.25.A.V1.21
Ø80 M20 50 9.25.A.V1.22
Ø80 M20 100 9.25.A.V1.23
Ø80 M20 150 9.25.A.V1.24
Ø80 M20 200 9.25.A.V1.25
Ø100 M16 50 9.25.A.V1.26
Ø100 M16 100 9.25.A.V1.27
Ø100 M16 150 9.25.A.V1.28
Ø100 M16 200 9.25.A.V1.29
Ø100 M20 50 9.25.A.V1.30
Ø100 M20 100 9.25.A.V1.31
Ø100 M20 150 9.25.A.V1.32
Ø100 M20 200 9.25.A.V1.33

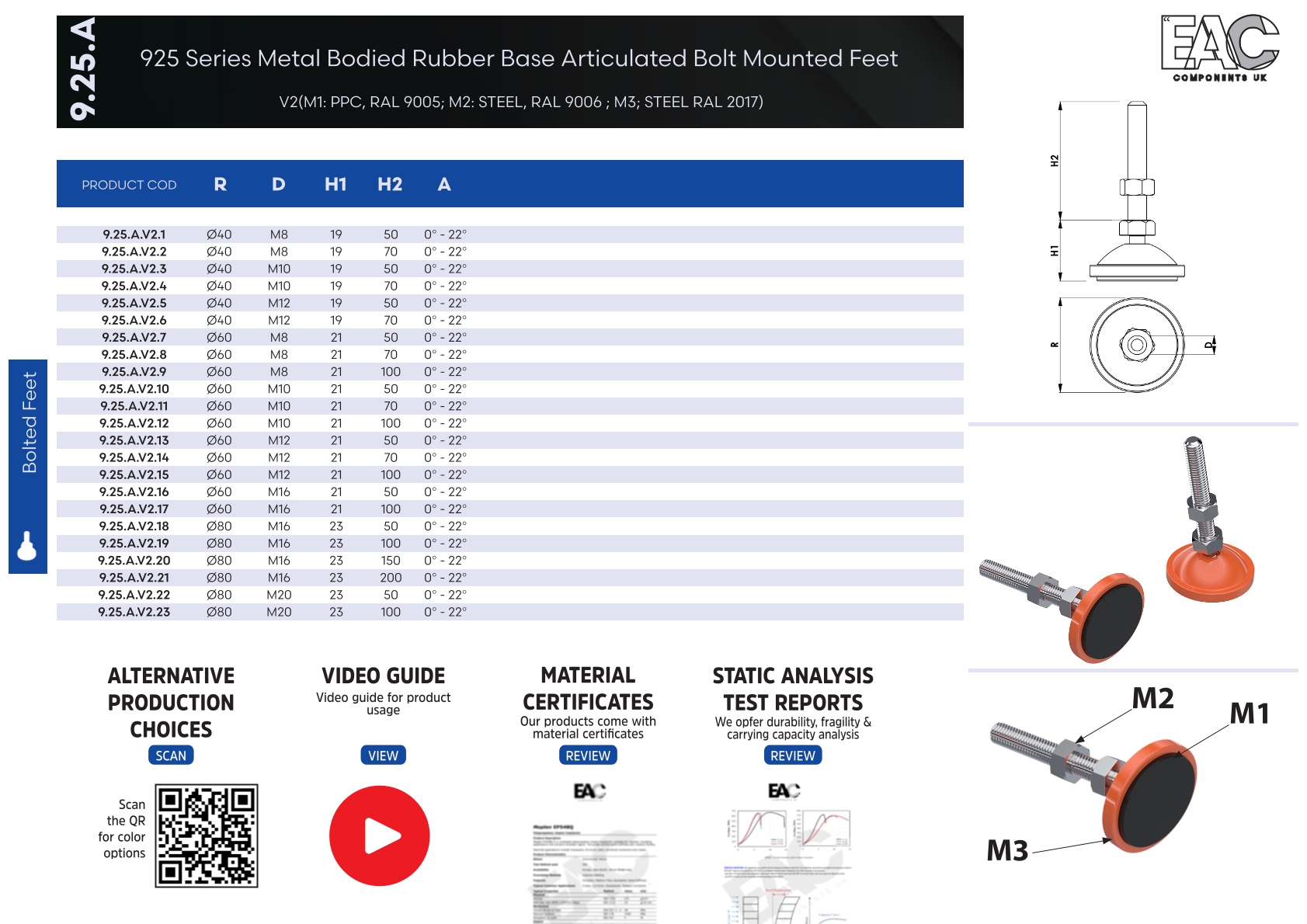

9.25.A.V2 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø60 M8 70 9.25.A.V2.8
Ø60 M12 100 9.25.A.V2.15
Ø60 M12 70 9.25.A.V2.14
Ø60 M12 50 9.25.A.V2.13
Ø60 M10 100 9.25.A.V2.12
Ø60 M10 70 9.25.A.V2.11
Ø40 M8 50 9.25.A.V2.1
Ø60 M8 100 9.25.A.V2.9
Ø80 M16 50 9.25.A.V2.18
Ø60 M8 50 9.25.A.V2.7
Ø40 M12 70 9.25.A.V2.6
Ø40 M12 50 9.25.A.V2.5
Ø40 M10 70 9.25.A.V2.4
Ø40 M10 50 9.25.A.V2.3
Ø40 M8 70 9.25.A.V2.2
Ø60 M10 50 9.25.A.V2.10
Ø80 M20 150 9.25.A.V2.24
Ø100 M20 150 9.25.A.V2.32
Ø100 M20 100 9.25.A.V2.31
Ø100 M20 50 9.25.A.V2.30
Ø100 M16 200 9.25.A.V2.29
Ø100 M16 150 9.25.A.V2.28
Ø100 M16 100 9.25.A.V2.27
Ø60 M16 50 9.25.A.V2.16
Ø80 M20 200 9.25.A.V2.25
Ø60 M16 100 9.25.A.V2.17
Ø80 M20 100 9.25.A.V2.23
Ø80 M20 50 9.25.A.V2.22
Ø80 M16 200 9.25.A.V2.21
Ø80 M16 150 9.25.A.V2.20
Ø80 M16 100 9.25.A.V2.19
Ø100 M20 200 9.25.A.V2.33
Ø100 M16 50 9.25.A.V2.26
Technical Drawing
