933 Series Metal Bodied Rubber Base Articulated Bolt Mounted Feet

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 9.33

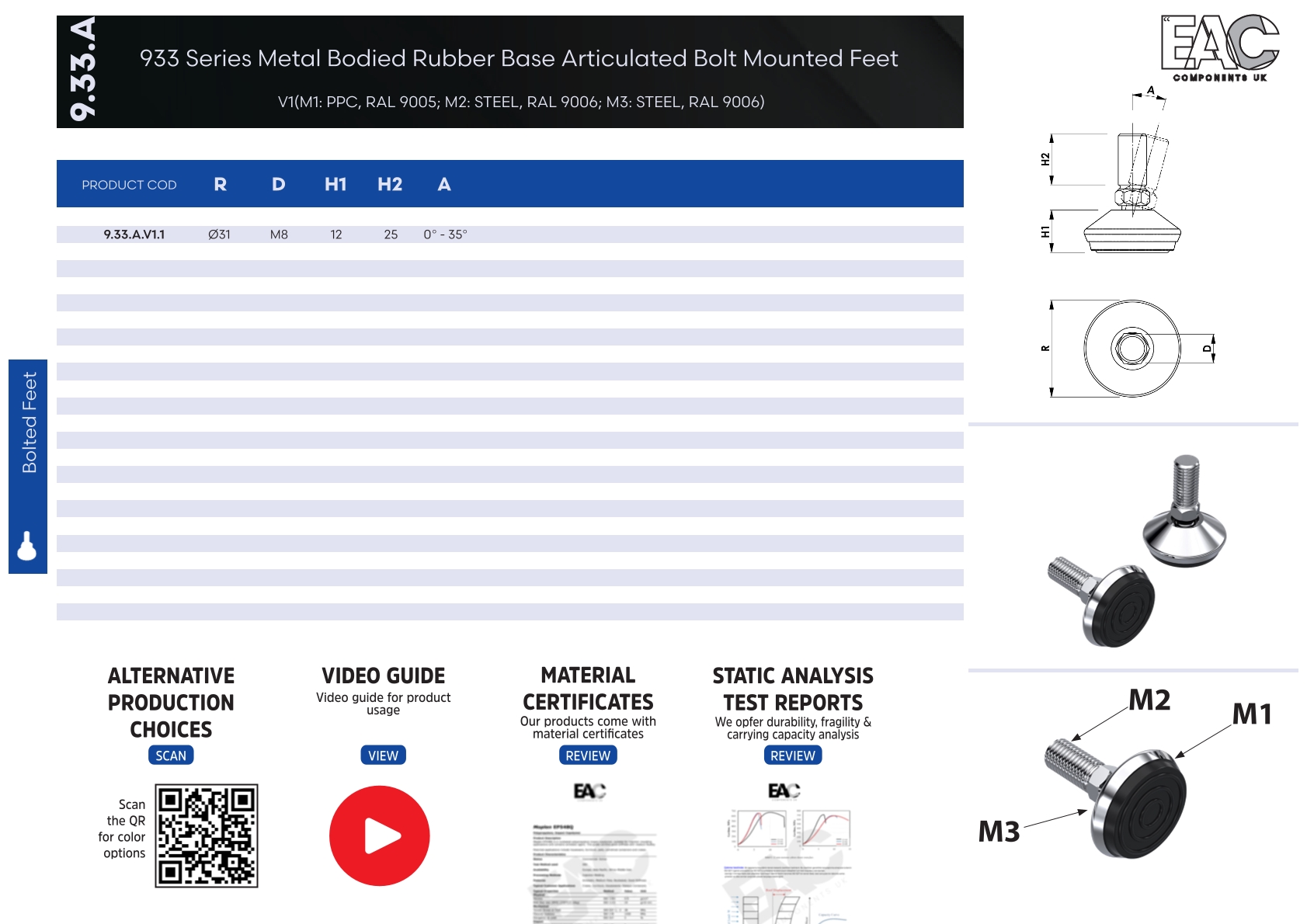

Material and Color Options (V)
9.33.A.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø31 M8 25 9.33.A.V1.1

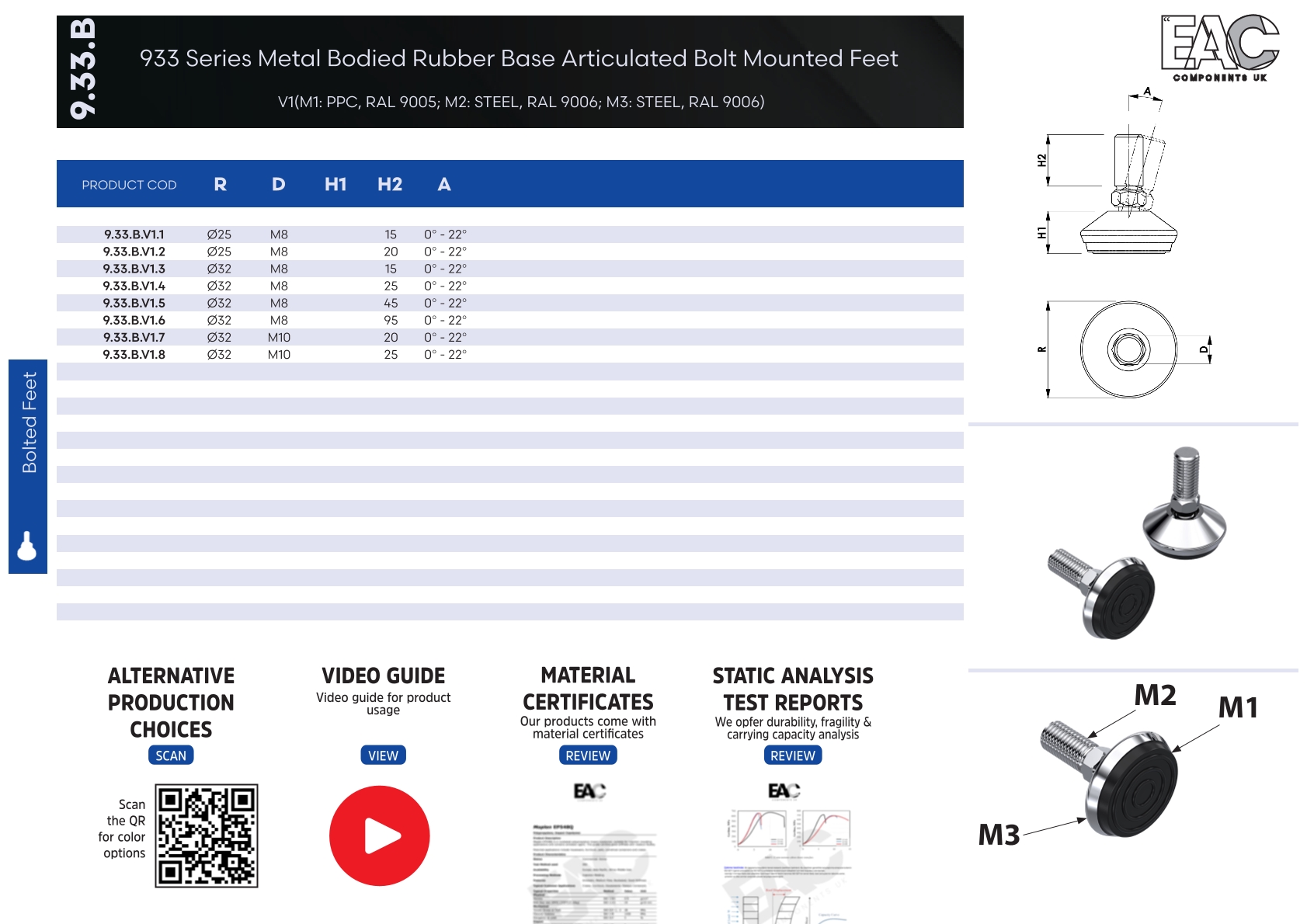

9.33.B.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø25 M8 15 9.33.B.V1.1
Ø25 M8 20 9.33.B.V1.2
Ø32 M8 15 9.33.B.V1.3
Ø32 M8 25 9.33.B.V1.4
Ø32 M8 45 9.33.B.V1.5
Ø32 M8 95 9.33.B.V1.6
Ø32 M10 20 9.33.B.V1.7
Ø32 M10 25 9.33.B.V1.8

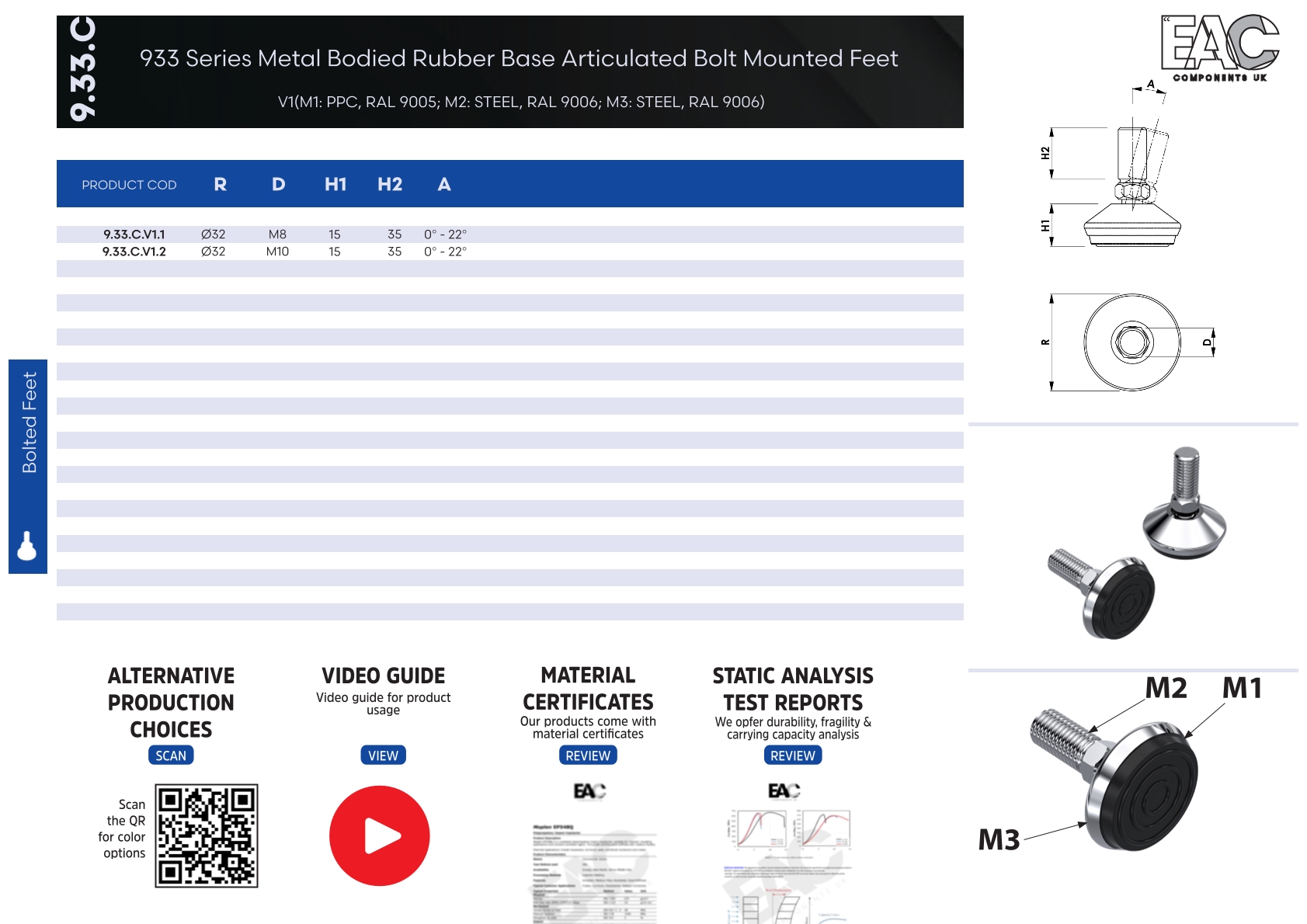

9.33.C.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø32 M8 35 9.33.C.V1.1
Ø32 M10 35 9.33.C.V1.2

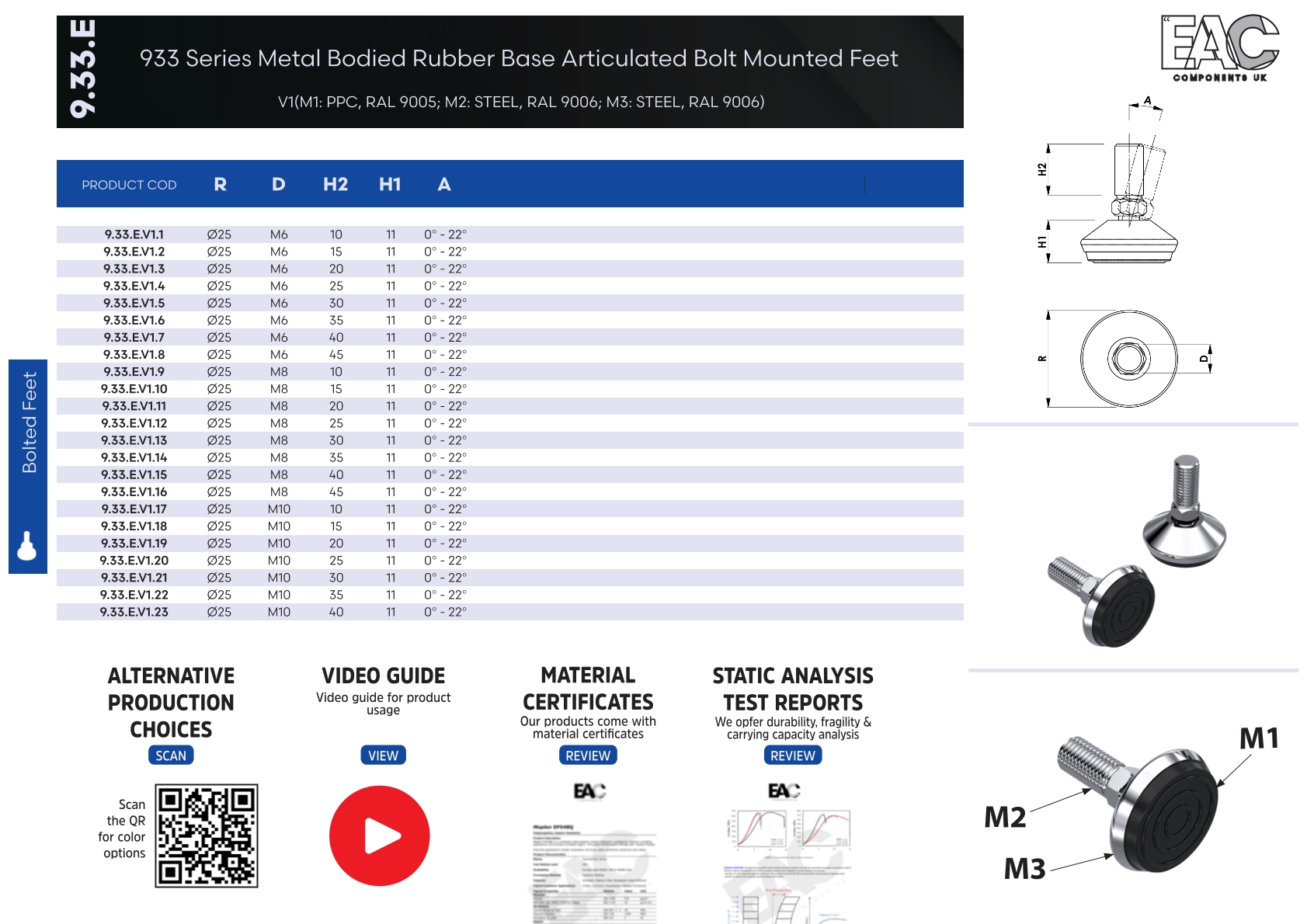

9.33.E.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø25 M6 10 9.33.E.V1.1
Ø25 M6 15 9.33.E.V1.2
Ø25 M6 20 9.33.E.V1.3
Ø25 M6 25 9.33.E.V1.4
Ø25 M6 30 9.33.E.V1.5
Ø25 M6 35 9.33.E.V1.6
Ø25 M6 40 9.33.E.V1.7
Ø25 M6 45 9.33.E.V1.8
Ø25 M8 10 9.33.E.V1.9
Ø25 M8 15 9.33.E.V1.10
Ø25 M8 20 9.33.E.V1.11
Ø25 M8 25 9.33.E.V1.12
Ø25 M8 30 9.33.E.V1.13
Ø25 M8 35 9.33.E.V1.14
Ø25 M8 40 9.33.E.V1.15
Ø25 M8 45 9.33.E.V1.16
Ø25 M10 10 9.33.E.V1.17
Ø25 M10 15 9.33.E.V1.18
Ø25 M10 20 9.33.E.V1.19
Ø25 M10 30 9.33.E.V1.21
Ø25 M10 35 9.33.E.V1.22
Ø25 M10 40 9.33.E.V1.23
Ø25 M10 45 9.33.E.V1.24
Ø32 M6 10 9.33.E.V1.25
Ø32 M6 15 9.33.E.V1.26
Ø32 M6 20 9.33.E.V1.27
Ø32 M6 25 9.33.E.V1.28
Ø32 M6 30 9.33.E.V1.29
Ø32 M6 35 9.33.E.V1.30
Ø32 M6 40 9.33.E.V1.31
Ø32 M6 45 9.33.E.V1.32
Ø32 M8 10 9.33.E.V1.33
Ø32 M8 15 9.33.E.V1.34
Ø32 M8 20 9.33.E.V1.35
Ø32 M8 25 9.33.E.V1.36
Ø32 M8 30 9.33.E.V1.37
Ø32 M8 35 9.33.E.V1.38
Ø32 M8 40 9.33.E.V1.39
Ø32 M8 45 9.33.E.V1.40
Ø32 M10 10 9.33.E.V1.41
Ø32 M10 15 9.33.E.V1.42
Ø32 M10 20 9.33.E.V1.43
Ø32 M10 25 9.33.E.V1.44
Ø32 M10 30 9.33.E.V1.45
Ø32 M10 35 9.33.E.V1.46
Ø32 M10 40 9.33.E.V1.47
Ø32 M10 45 9.33.E.V1.48
Technical Drawing
