935 Series Plastic Bodied Fixed Bolted Feet

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 9.35

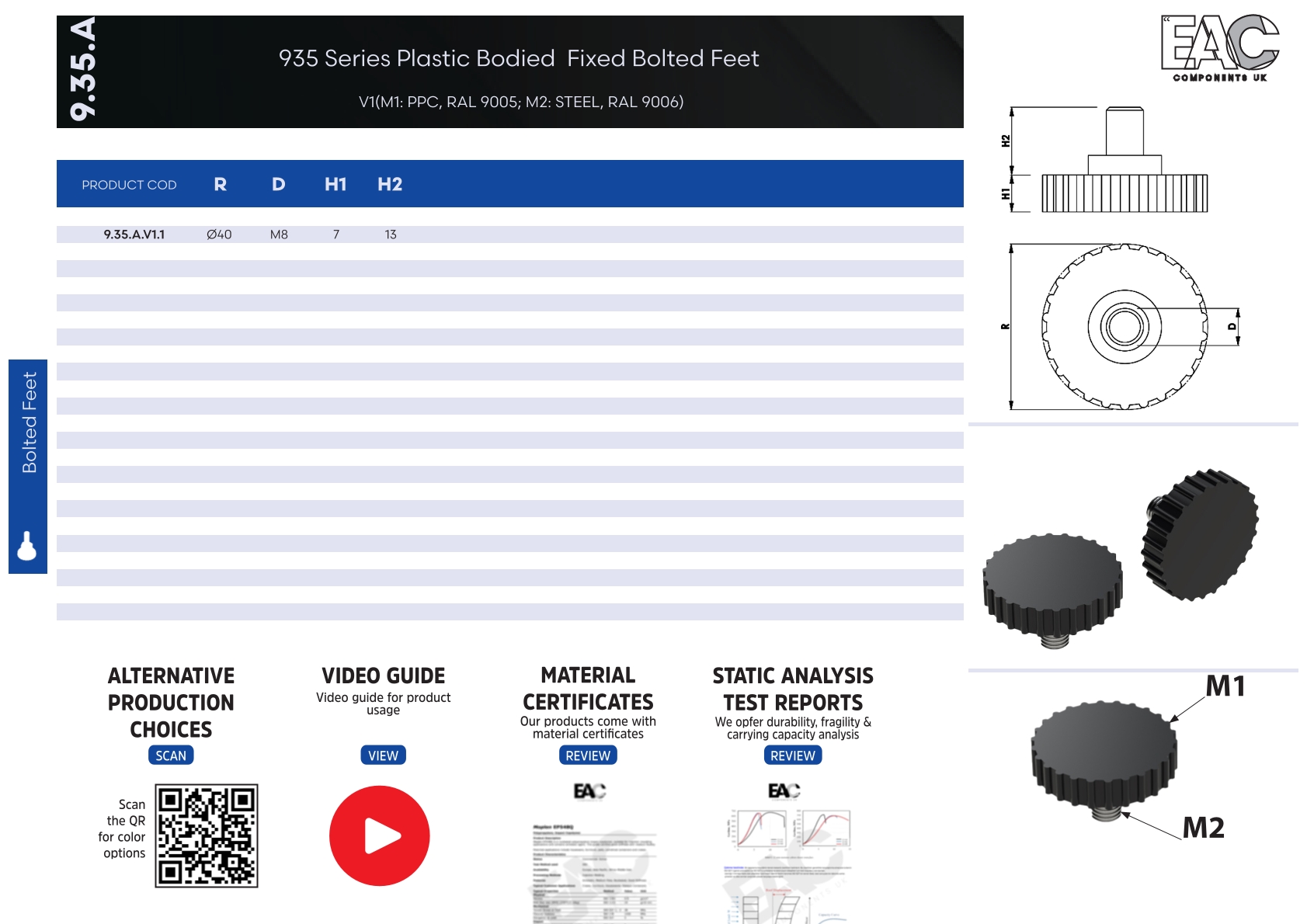

Material and Color Options (V)
9.35.A.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø40 M8 13 9.35.A.V1.1

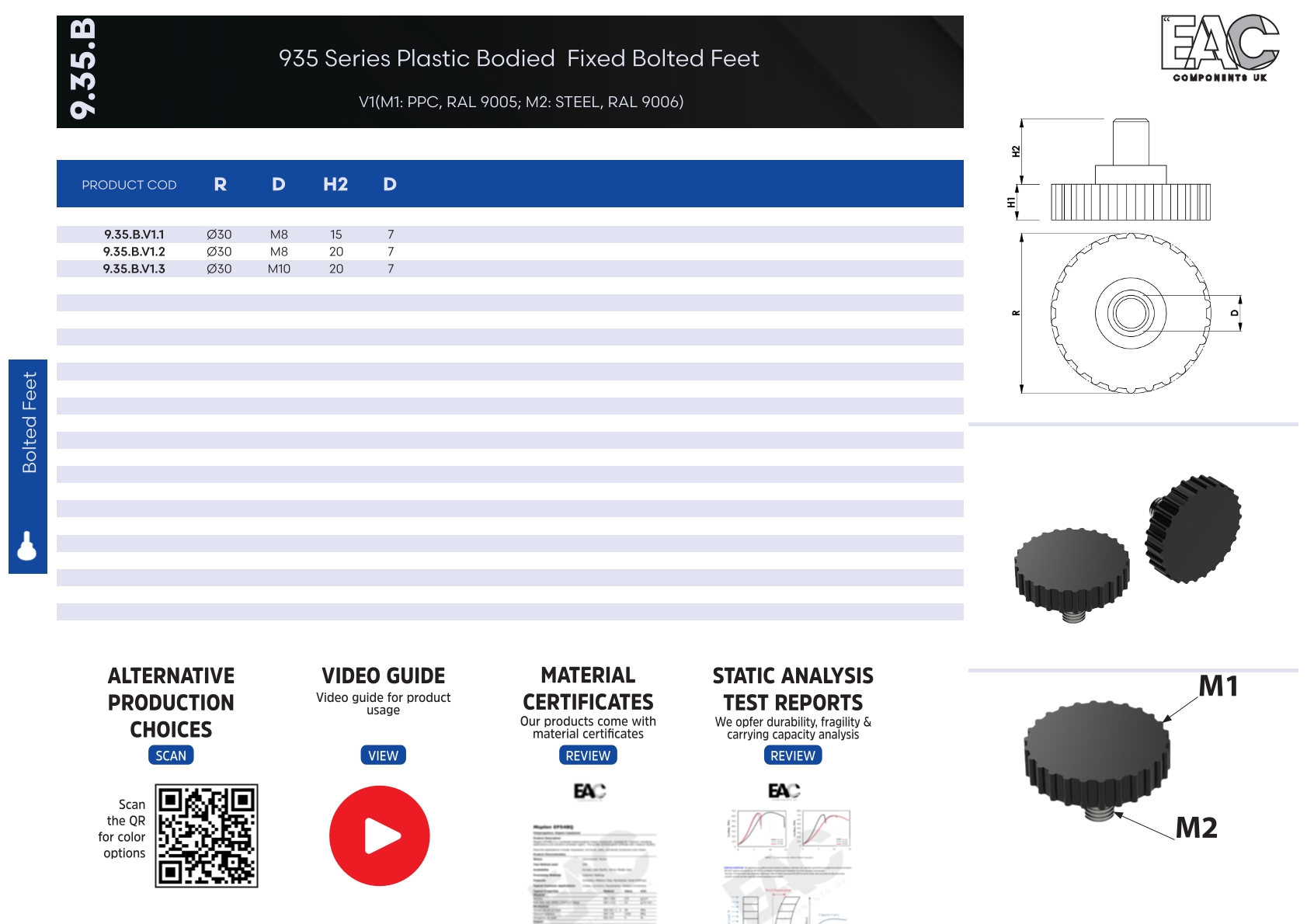

9.35.B.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø30 M8 15 9.35.B.V1.1
Ø30 M8 20 9.35.B.V1.2
Ø30 M10 20 9.35.B.V1.3

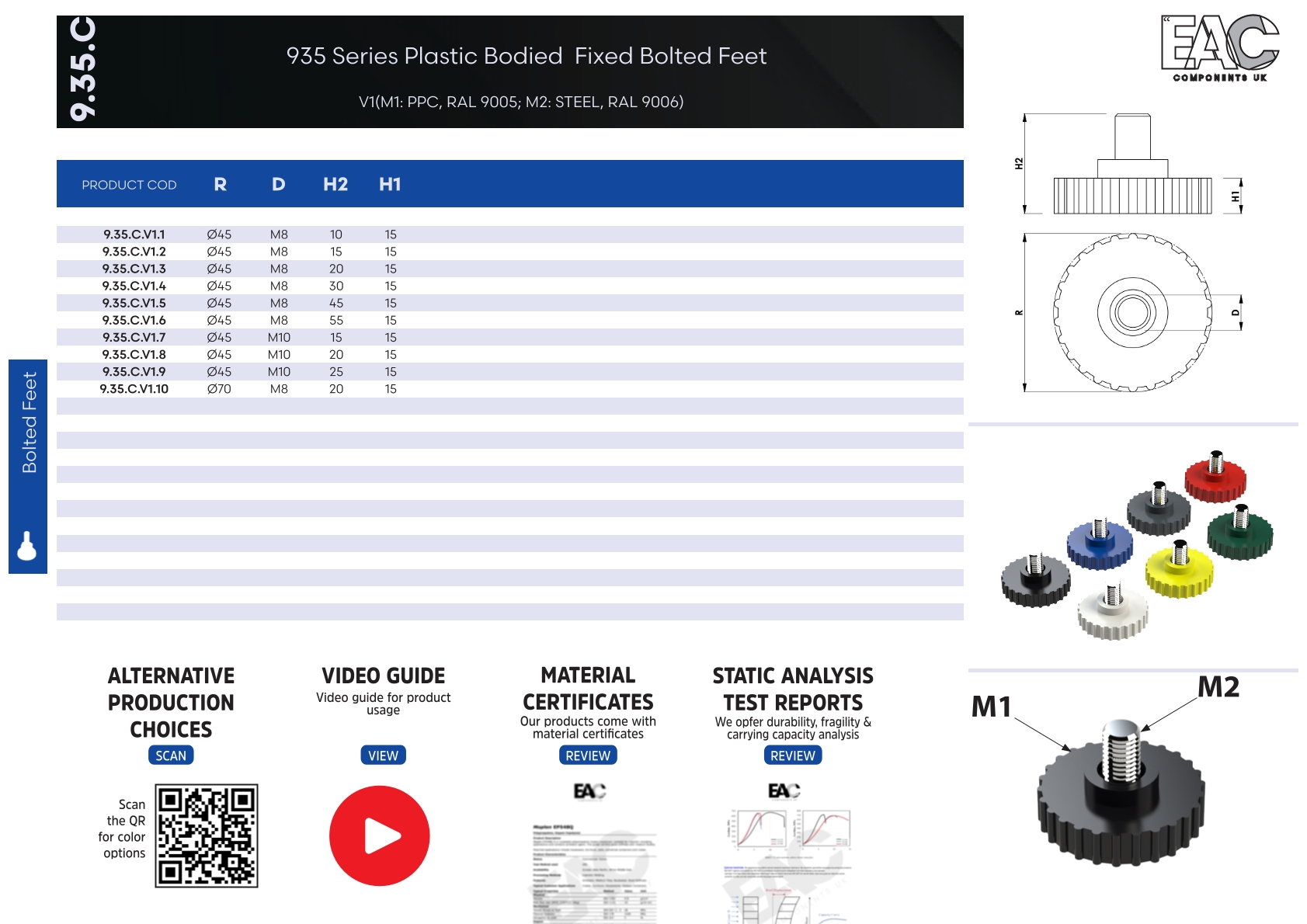

9.35.C.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø45 M8 10 9.35.C.V1.1
Ø45 M8 15 9.35.C.V1.2
Ø45 M8 20 9.35.C.V1.3
Ø45 M8 30 9.35.C.V1.4
Ø45 M8 45 9.35.C.V1.5
Ø45 M8 55 9.35.C.V1.6
Ø45 M10 15 9.35.C.V1.7
Ø45 M10 20 9.35.C.V1.8
Ø45 M10 25 9.35.C.V1.9
Ø70 M8 20 9.35.C.V1.10
Technical Drawing
