944 Series Plastic Bodied Fixed Bolted Feet

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 9.44

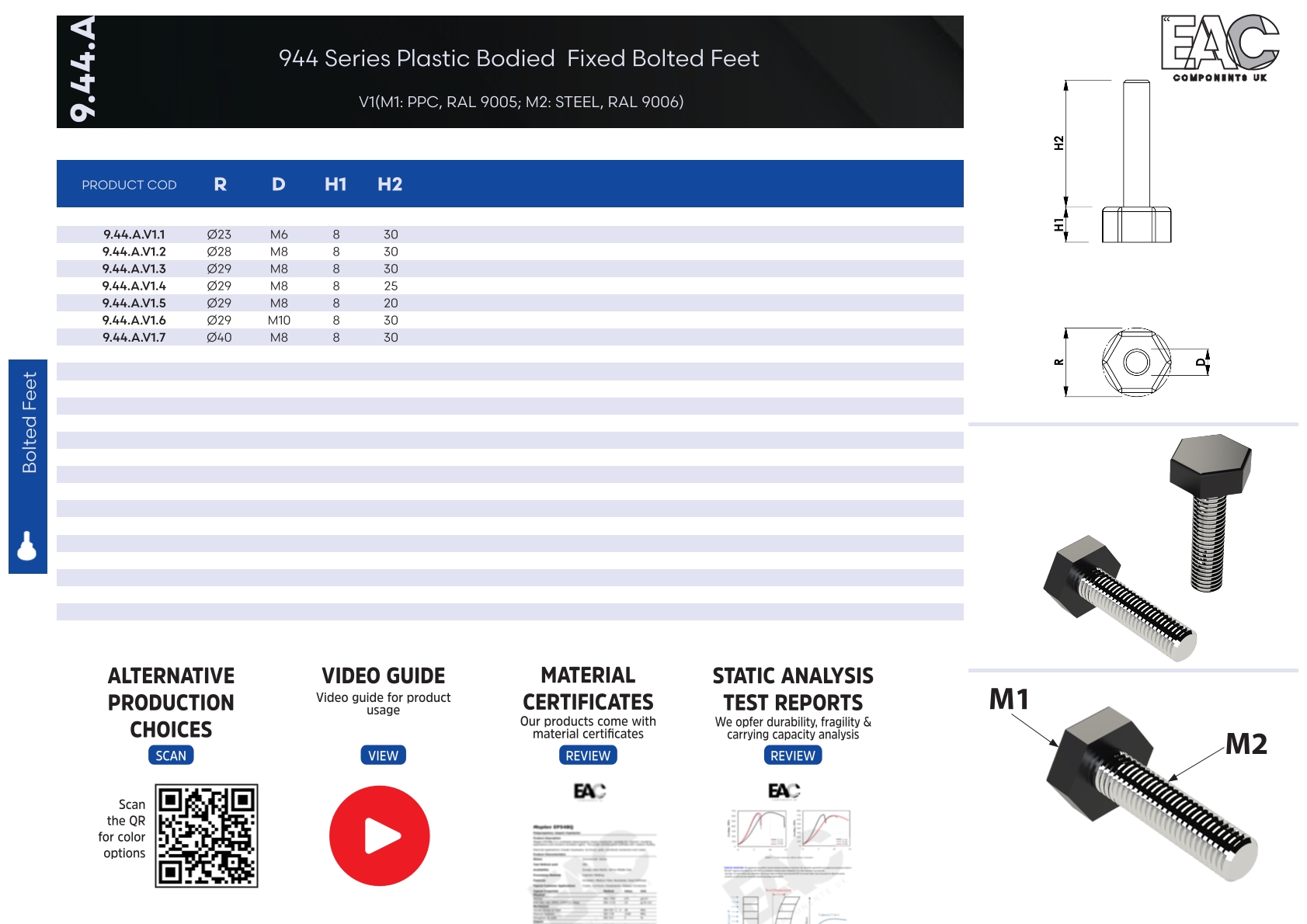

Material and Color Options (V)
9.44.A.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø23 M6 30 9.44.A.V1.1
Ø28 M8 30 9.44.A.V1.2
Ø29 M8 30 9.44.A.V1.3
Ø29 M8 25 9.44.A.V1.4
Ø29 M8 20 9.44.A.V1.5
Ø29 M10 30 9.44.A.V1.6
Ø40 M8 30 9.44.A.V1.7

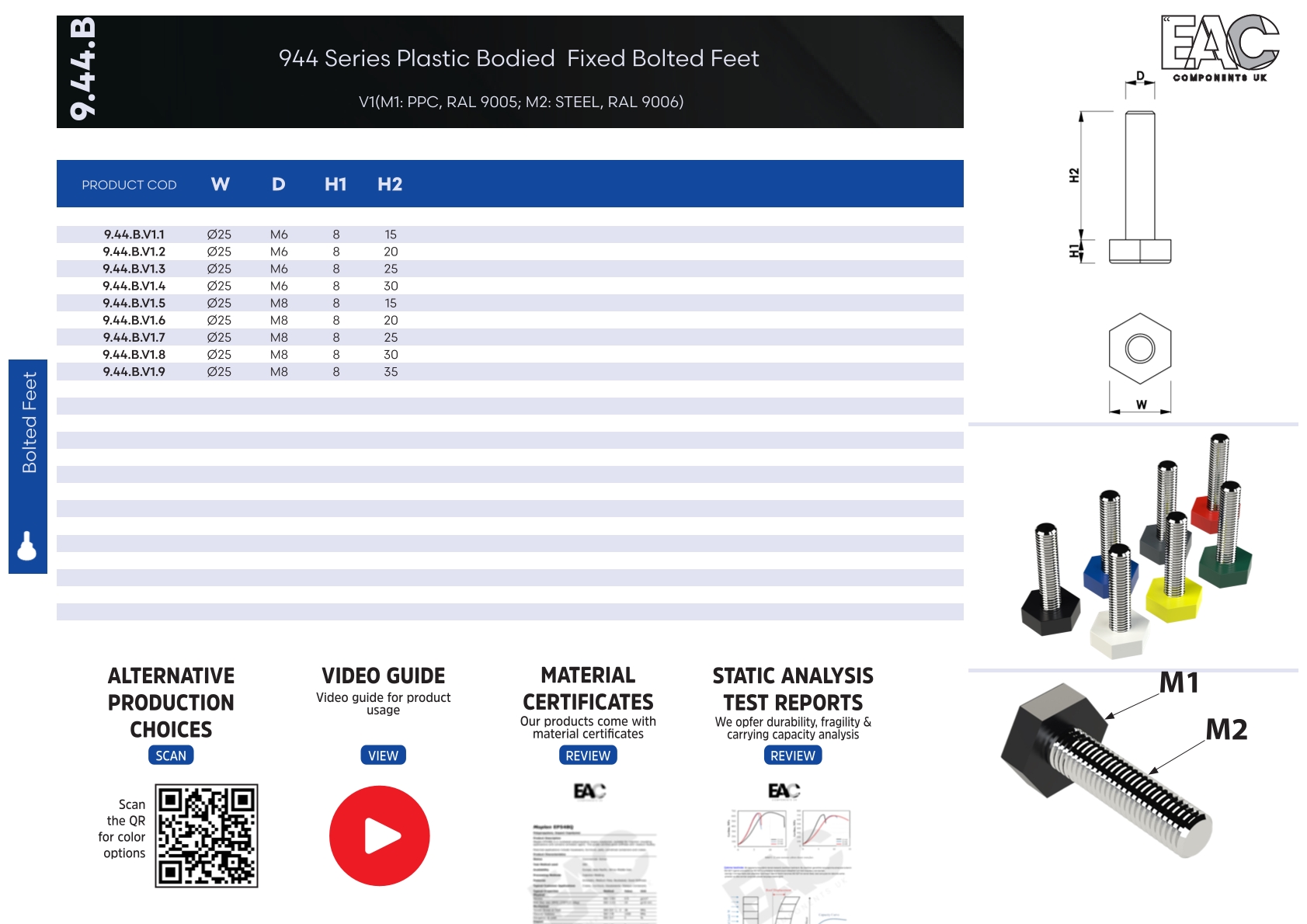

9.44.B.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø25 M6 15 9.44.B.V1.1
Ø25 M6 20 9.44.B.V1.2
Ø25 M6 25 9.44.B.V1.3
Ø25 M6 30 9.44.B.V1.4
Ø25 M8 15 9.44.B.V1.5
Ø25 M8 20 9.44.B.V1.6
Ø25 M8 25 9.44.B.V1.7
Ø25 M8 30 9.44.B.V1.8
Ø25 M8 35 9.44.B.V1.9

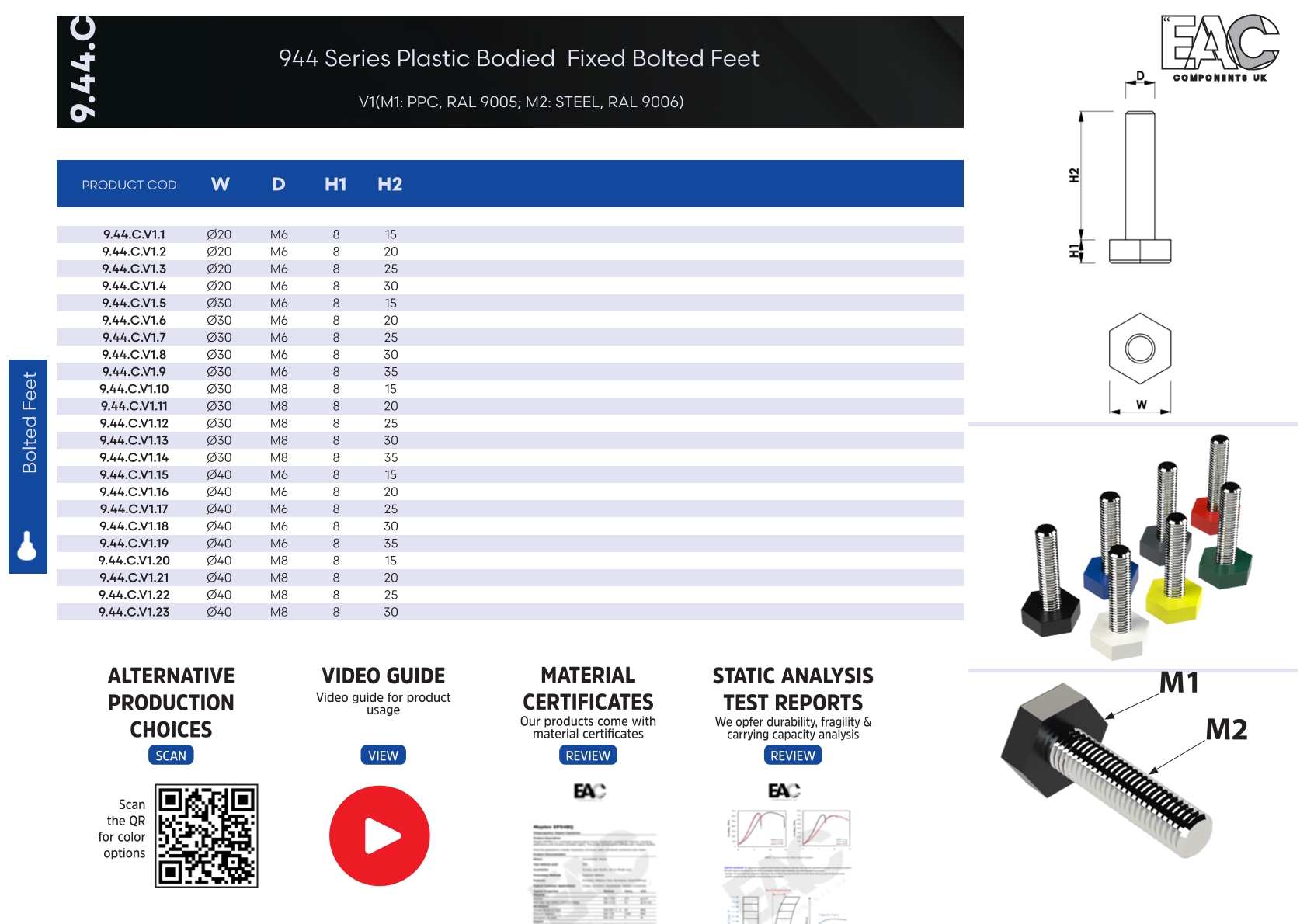

9.44.C.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø20 M6 15 9.44.C.V1.1
Ø20 M6 20 9.44.C.V1.2
Ø20 M6 25 9.44.C.V1.3
Ø20 M6 30 9.44.C.V1.4
Ø30 M6 15 9.44.C.V1.5
Ø30 M6 20 9.44.C.V1.6
Ø30 M6 25 9.44.C.V1.7
Ø30 M6 30 9.44.C.V1.8
Ø30 M6 35 9.44.C.V1.9
Ø30 M8 15 9.44.C.V1.10
Ø30 M8 20 9.44.C.V1.11
Ø30 M8 25 9.44.C.V1.12
Ø30 M8 30 9.44.C.V1.13
Ø30 M8 35 9.44.C.V1.14
Ø40 M6 15 9.44.C.V1.15
Ø40 M6 20 9.44.C.V1.16
Ø40 M6 25 9.44.C.V1.17
Ø40 M6 30 9.44.C.V1.18
Ø40 M6 35 9.44.C.V1.19
Ø40 M8 15 9.44.C.V1.20
Ø40 M8 20 9.44.C.V1.21
Ø40 M8 25 9.44.C.V1.22
Ø40 M8 30 9.44.C.V1.23
Ø40 M8 35 9.44.C.V1.24
Ø50 M6 15 9.44.C.V1.25
Ø50 M6 20 9.44.C.V1.26
Ø50 M6 25 9.44.C.V1.27
Ø50 M6 30 9.44.C.V1.28
Ø50 M6 35 9.44.C.V1.29
Ø50 M8 15 9.44.C.V1.30
Ø50 M8 20 9.44.C.V1.31
Ø50 M8 25 9.44.C.V1.32
Ø50 M8 30 9.44.C.V1.33
Ø50 M8 35 9.44.C.V1.34
Ø60 M8 15 9.44.C.V1.35
Ø60 M8 20 9.44.C.V1.36
Ø60 M8 25 9.44.C.V1.37
Ø60 M8 30 9.44.C.V1.38
Ø60 M8 35 9.44.C.V1.39
Ø60 M10 15 9.44.C.V1.40
Ø60 M10 20 9.44.C.V1.41
Ø60 M10 25 9.44.C.V1.42
Ø60 M10 30 9.44.C.V1.43
Ø60 M10 35 9.44.C.V1.44
Ø70 M8 20 9.44.C.V1.45
Ø70 M8 25 9.44.C.V1.46
Ø70 M8 30 9.44.C.V1.47
Ø70 M8 35 9.44.C.V1.48
Ø70 M10 15 9.44.C.V1.49
Ø70 M10 20 9.44.C.V1.50
Ø70 M10 25 9.44.C.V1.51
Ø70 M10 30 9.44.C.V1.52
Ø70 M10 35 9.44.C.V1.53
Technical Drawing
