945 Series Plastic Bodied Articulated Bolt Mounted Feet

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 9.45

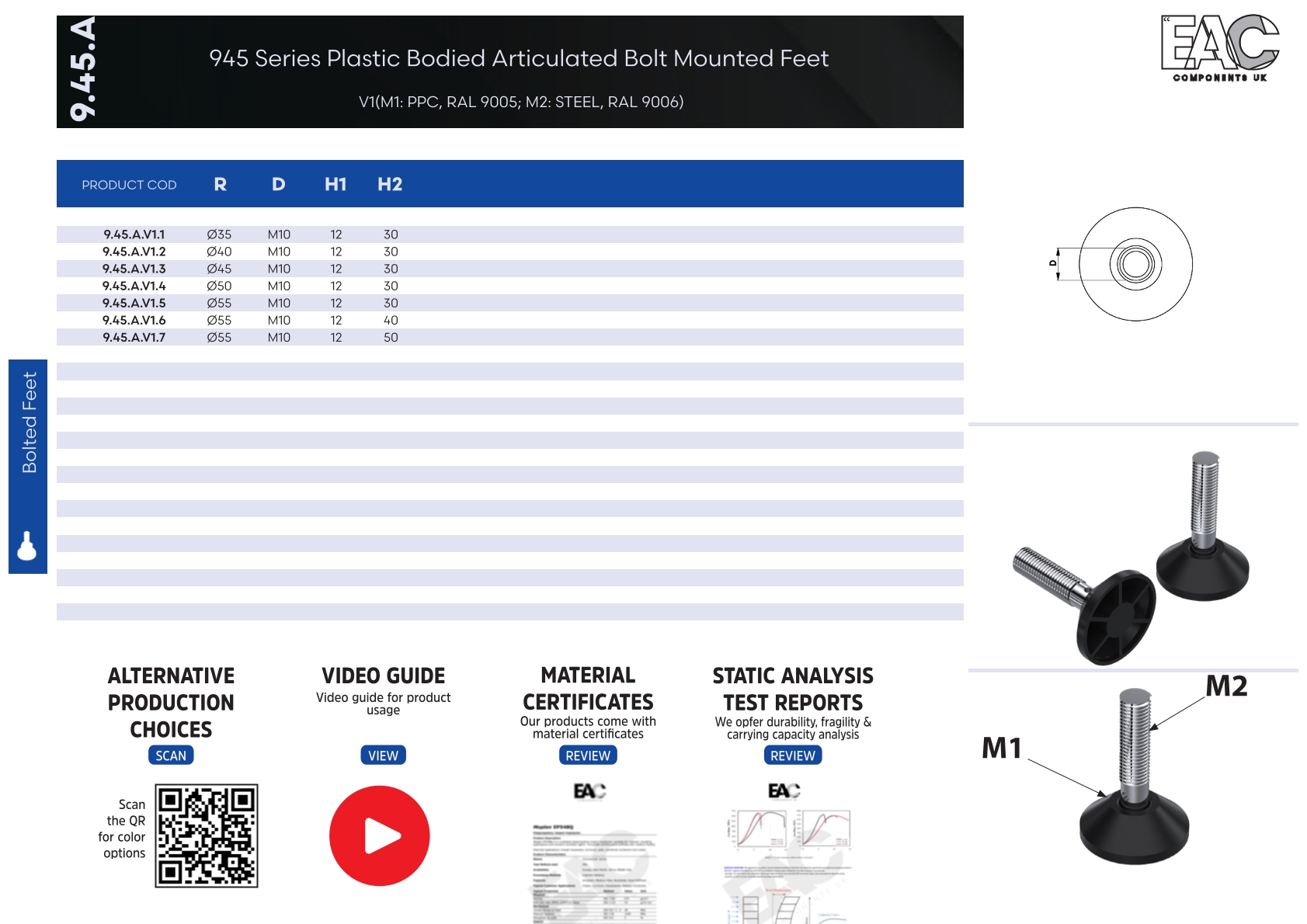

Material and Color Options (V)
9.45.A.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø35 M10 30 9.45.A.V1.1
Ø40 M10 30 9.45.A.V1.2
Ø45 M10 30 9.45.A.V1.3
Ø50 M10 30 9.45.A.V1.4
Ø55 M10 30 9.45.A.V1.5
Ø55 M10 40 9.45.A.V1.6
Ø55 M10 50 9.45.A.V1.7

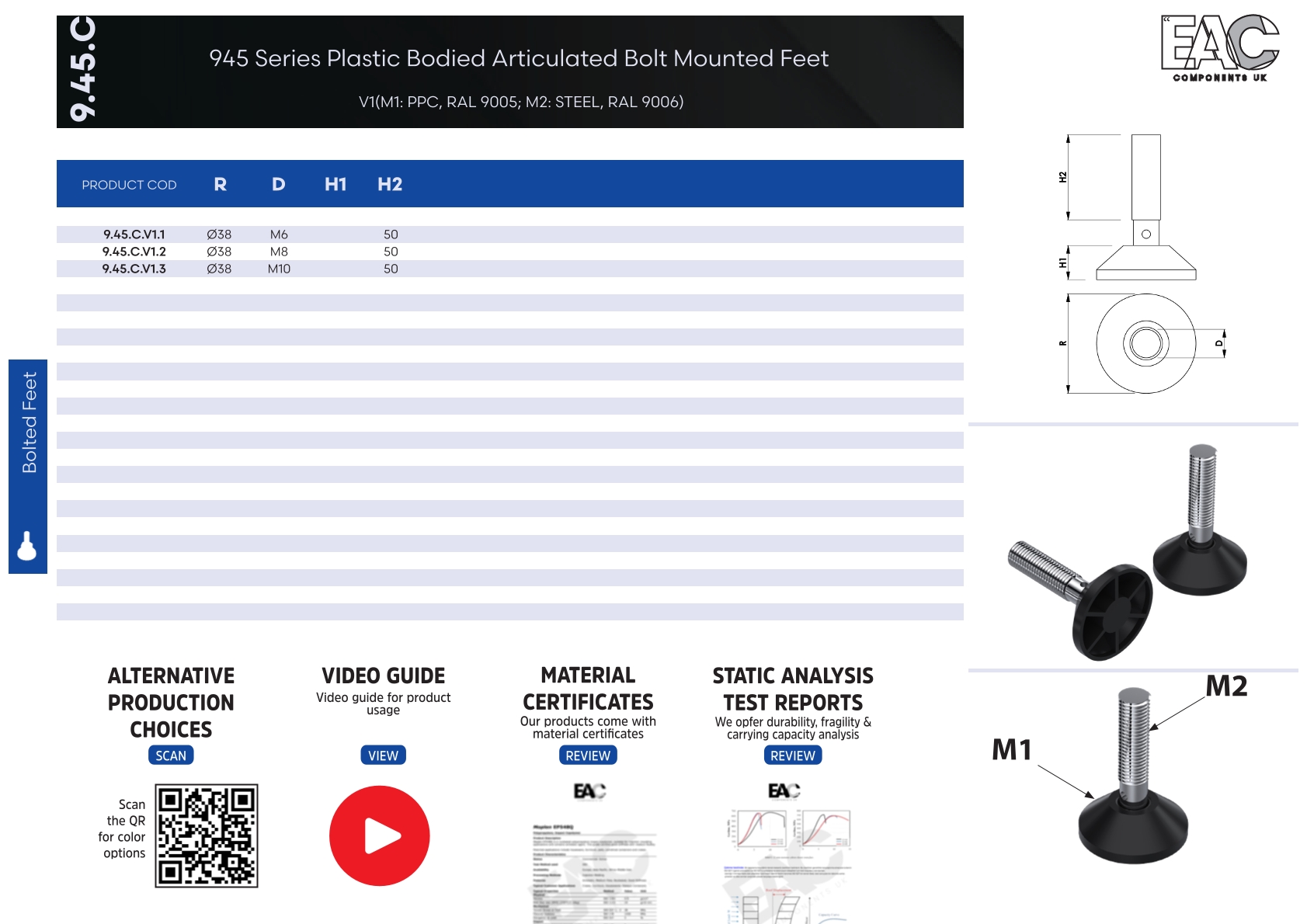

9.45.C.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø38 M6 50 9.45.C.V1.1
Ø38 M8 50 9.45.C.V1.2
Ø38 M10 50 9.45.C.V1.3
Technical Drawing
3D Modelling
3D Modelling

To access the product file, you can click on the "Download 3D Model" button below, fill out the form and send it.

Download 3D Model
Montage Video

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Technical Detail

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Raw Material Certificate

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Quality and Analysis Certificates

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Category Introduction

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
