969 Series Metal Bodied , Rubber Base , Fixable Fixed Bolted Feet

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 9.69
Material and Color Options (V)
9.69.A.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø80 M10 50 9.69.A.V1.1
Ø80 M10 100 9.69.A.V1.2
Ø80 M12 50 9.69.A.V1.3
Ø80 M12 100 9.69.A.V1.4
Ø80 M12 150 9.69.A.V1.5
Ø80 M16 100 9.69.A.V1.6
Ø80 M16 150 9.69.A.V1.7
Ø80 M20 100 9.69.A.V1.8
Ø80 M20 150 9.69.A.V1.9
9.69.A.V2 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø80 M20 150 9.69.A.V2.9
Ø80 M20 100 9.69.A.V2.8
Ø80 M16 150 9.69.A.V2.7
Ø80 M16 100 9.69.A.V2.6
Ø80 M12 150 9.69.A.V2.5
Ø80 M12 100 9.69.A.V2.4
Ø80 M12 50 9.69.A.V2.3
Ø80 M10 100 9.69.A.V2.2
Ø80 M10 50 9.69.A.V2.1

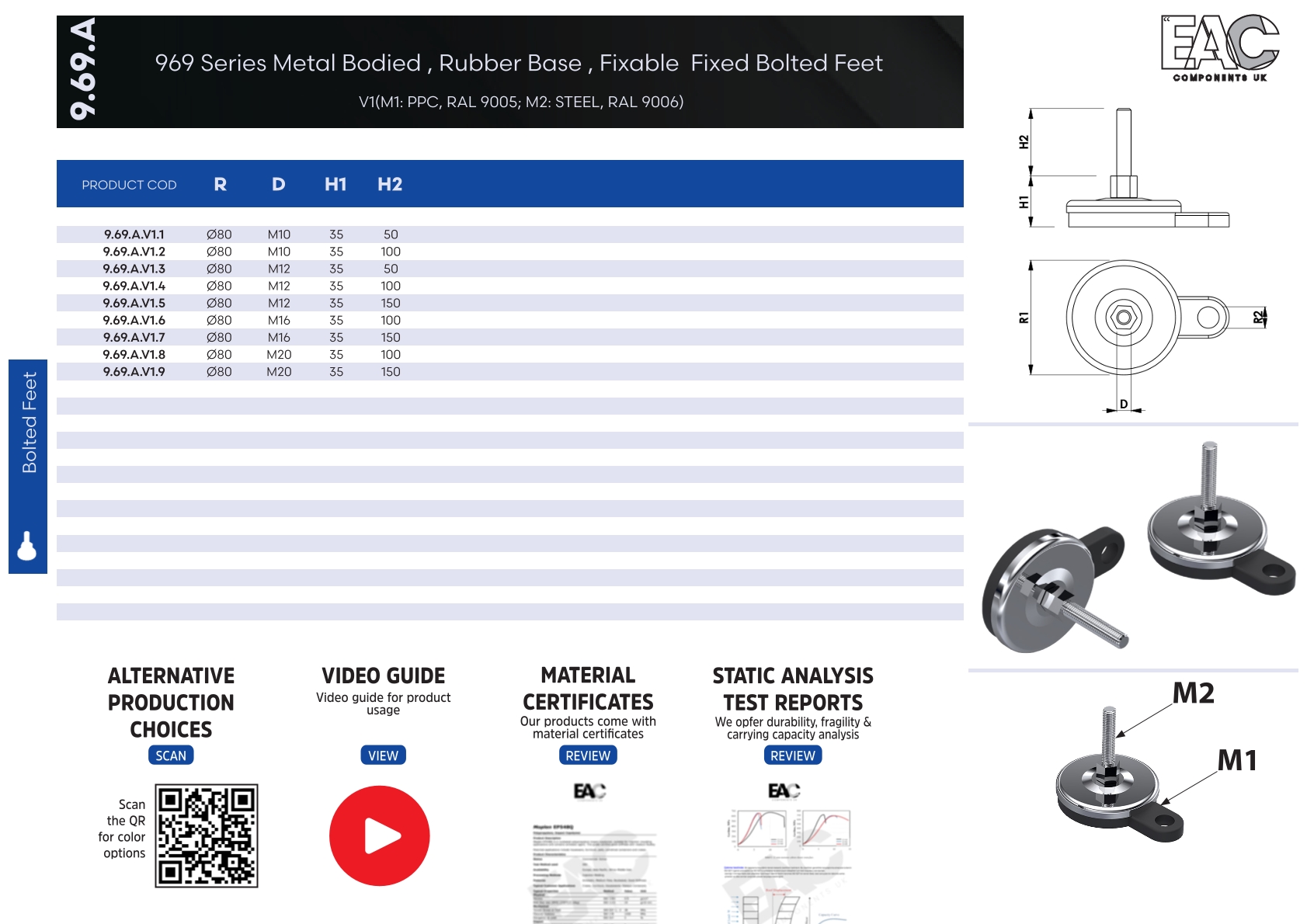

Technical Drawing
3D Modelling
