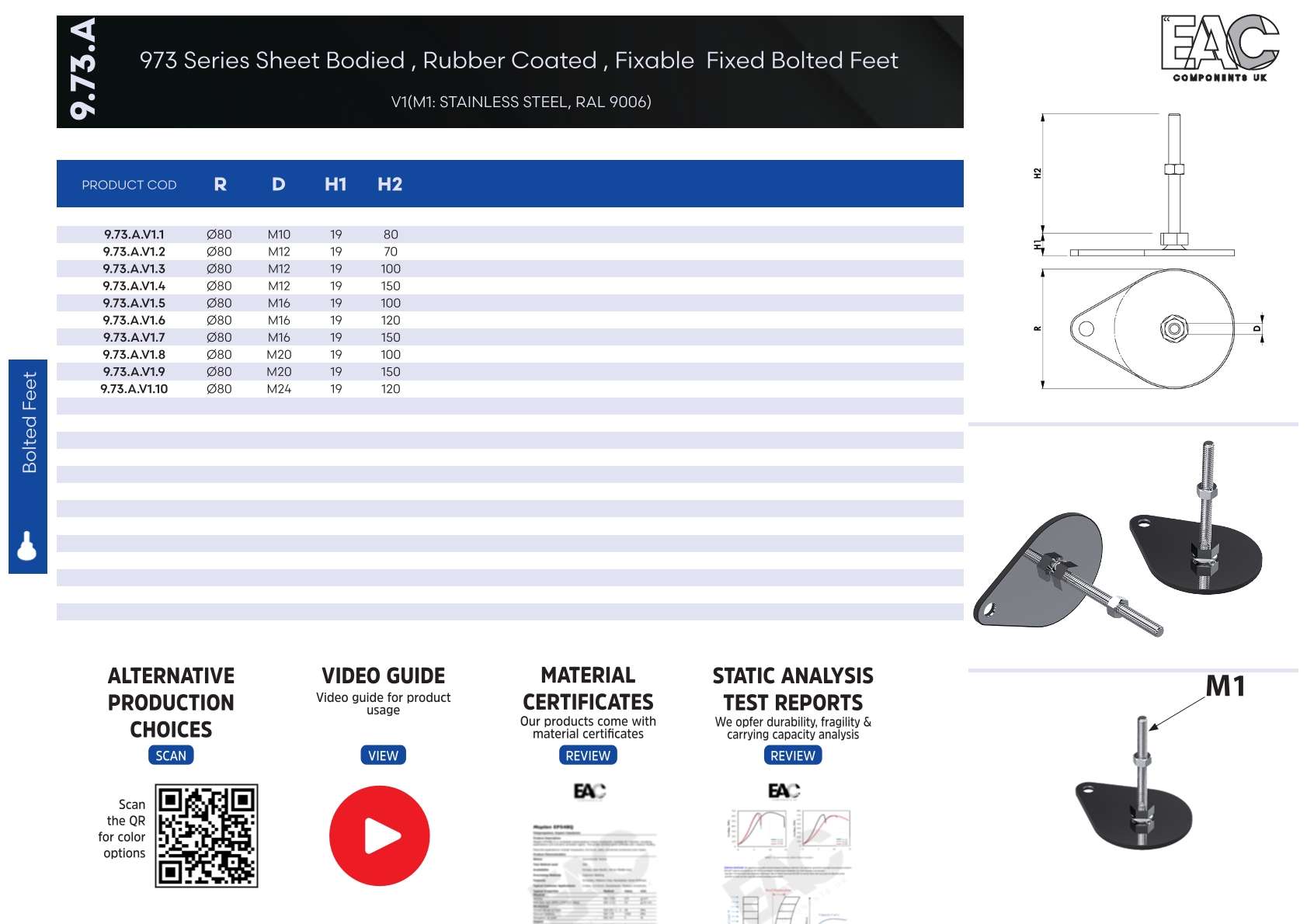

973 Series Sheet Bodied , Rubber Coated , Fixable Fixed Bolted Feet

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 9.73
Material and Color Options (V)
9.73.A.V1 - PASLANMAZ ÇELİK - RAL 9006
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø80 M10 80 9.73.A.V1.1
Ø80 M12 70 9.73.A.V1.2
Ø80 M12 100 9.73.A.V1.3
Ø80 M12 150 9.73.A.V1.4
Ø80 M16 100 9.73.A.V1.5
Ø80 M16 120 9.73.A.V1.6
Ø80 M16 150 9.73.A.V1.7
Ø80 M20 100 9.73.A.V1.8
Ø80 M20 150 9.73.A.V1.9
Ø80 M24 120 9.73.A.V1.10
9.73.A.V2 - ÇELİK - RAL 9006
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø80 M24 120 9.73.A.V2.10
Ø80 M20 150 9.73.A.V2.9
Ø80 M20 100 9.73.A.V2.8
Ø80 M16 150 9.73.A.V2.7
Ø80 M16 120 9.73.A.V2.6
Ø80 M16 100 9.73.A.V2.5
Ø80 M12 150 9.73.A.V2.4
Ø80 M12 100 9.73.A.V2.3
Ø80 M12 70 9.73.A.V2.2
Ø80 M10 80 9.73.A.V2.1
Technical Drawing
