975 Series Metal Bodied Rubber Base Articulated Bolt Mounted Feet

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 9.75
Material and Color Options (V)
9.75.A.V1 - PPC - RAL 2007
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø100 M10 50 9.75.A.V1.1
Ø100 M10 100 9.75.A.V1.2
Ø100 M12 50 9.75.A.V1.3
Ø100 M12 100 9.75.A.V1.4
Ø100 M12 150 9.75.A.V1.5
Ø100 M16 100 9.75.A.V1.6
Ø100 M16 150 9.75.A.V1.7
Ø100 M20 100 9.75.A.V1.8
Ø100 M20 150 9.75.A.V1.9

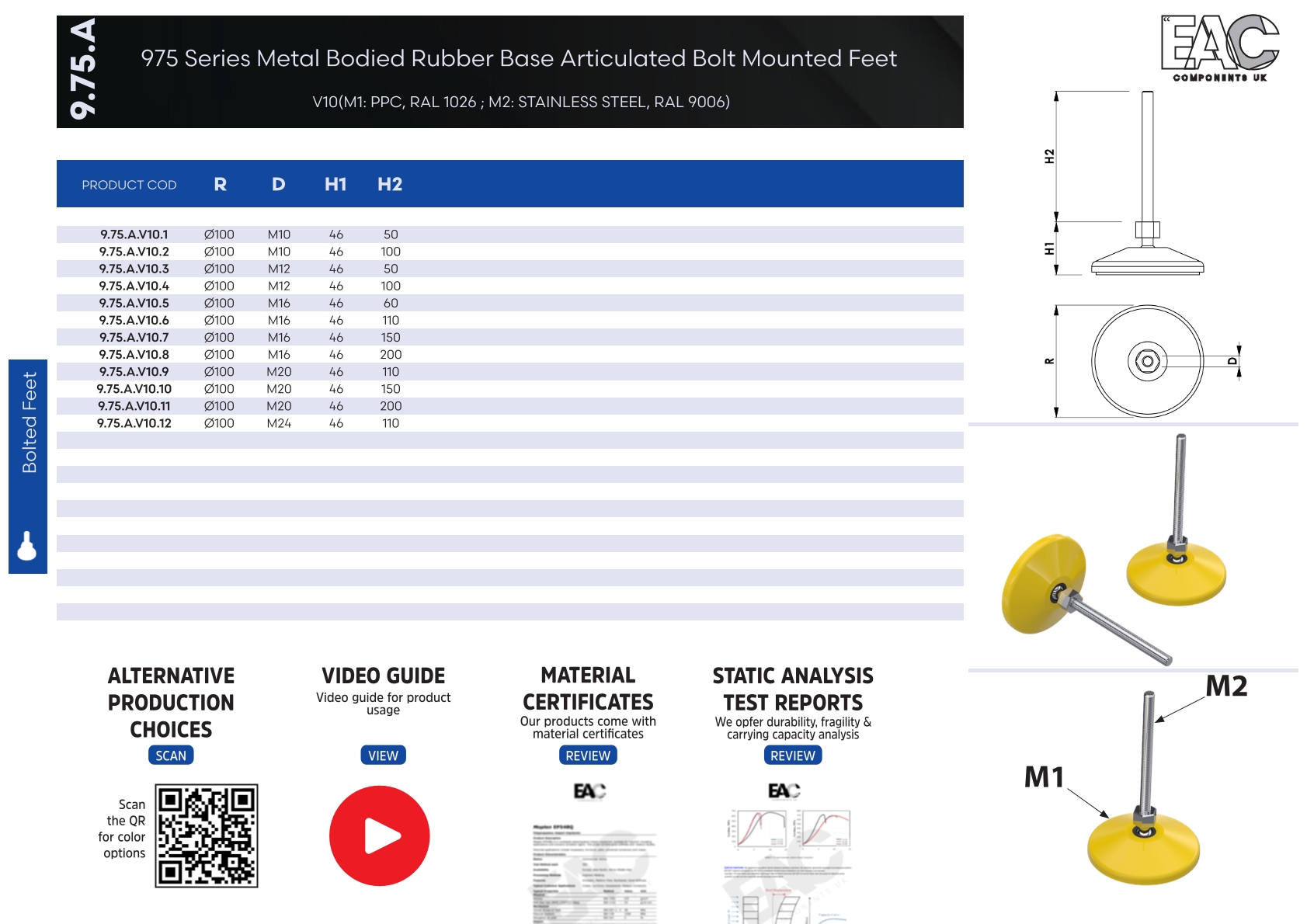

9.75.A.V10 - PPC - RAL 1026
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø100 M24 110 9.75.A.V10.12
Ø100 M20 200 9.75.A.V10.11
Ø100 M20 150 9.75.A.V10.10
Ø100 M20 110 9.75.A.V10.9
Ø100 M16 200 9.75.A.V10.8
Ø100 M16 150 9.75.A.V10.7
Ø100 M16 110 9.75.A.V10.6
Ø100 M16 60 9.75.A.V10.5
Ø100 M12 100 9.75.A.V10.4
Ø100 M12 50 9.75.A.V10.3
Ø100 M10 100 9.75.A.V10.2
Ø100 M10 50 9.75.A.V10.1
9.75.A.V2 - PPC - RAL 3020
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø100 M20 150 9.75.A.V2.9
Ø100 M20 100 9.75.A.V2.8
Ø100 M16 150 9.75.A.V2.7
Ø100 M16 100 9.75.A.V2.6
Ø100 M12 150 9.75.A.V2.5
Ø100 M12 100 9.75.A.V2.4
Ø100 M12 50 9.75.A.V2.3
Ø100 M10 100 9.75.A.V2.2
Ø100 M10 50 9.75.A.V2.1
9.75.A.V3 - PPC - RAL 5002
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø100 M20 150 9.75.A.V3.9
Ø100 M20 100 9.75.A.V3.8
Ø100 M16 150 9.75.A.V3.7
Ø100 M16 100 9.75.A.V3.6
Ø100 M12 150 9.75.A.V3.5
Ø100 M12 100 9.75.A.V3.4
Ø100 M12 50 9.75.A.V3.3
Ø100 M10 100 9.75.A.V3.2
Ø100 M10 50 9.75.A.V3.1
9.75.A.V4 - PPC - RAL 7004
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø100 M20 150 9.75.A.V4.9
Ø100 M20 100 9.75.A.V4.8
Ø100 M16 150 9.75.A.V4.7
Ø100 M16 100 9.75.A.V4.6
Ø100 M12 150 9.75.A.V4.5
Ø100 M12 100 9.75.A.V4.4
Ø100 M12 50 9.75.A.V4.3
Ø100 M10 100 9.75.A.V4.2
Ø100 M10 50 9.75.A.V4.1
9.75.A.V5 - PPC - RAL 1026
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø100 M20 150 9.75.A.V5.9
Ø100 M20 100 9.75.A.V5.8
Ø100 M16 150 9.75.A.V5.7
Ø100 M16 100 9.75.A.V5.6
Ø100 M12 150 9.75.A.V5.5
Ø100 M12 100 9.75.A.V5.4
Ø100 M12 50 9.75.A.V5.3
Ø100 M10 100 9.75.A.V5.2
Ø100 M10 50 9.75.A.V5.1
9.75.A.V6 - PPC - RAL 2007
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø100 M24 110 9.75.A.V6.12
Ø100 M20 200 9.75.A.V6.11
Ø100 M20 150 9.75.A.V6.10
Ø100 M20 110 9.75.A.V6.9
Ø100 M16 200 9.75.A.V6.8
Ø100 M16 150 9.75.A.V6.7
Ø100 M16 110 9.75.A.V6.6
Ø100 M16 60 9.75.A.V6.5
Ø100 M12 100 9.75.A.V6.4
Ø100 M12 50 9.75.A.V6.3
Ø100 M10 100 9.75.A.V6.2
Ø100 M10 50 9.75.A.V6.1

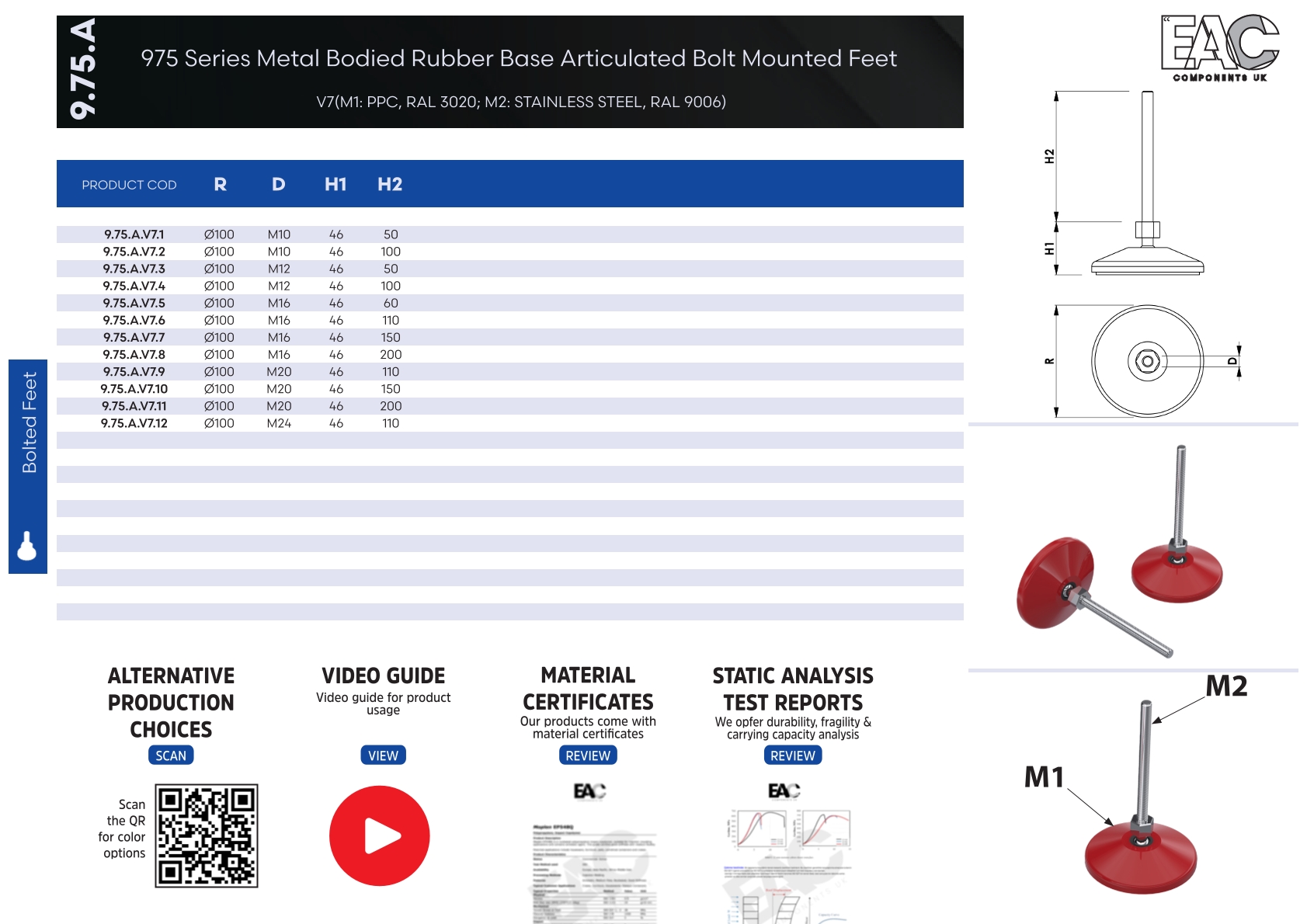

9.75.A.V7 - PPC - RAL 3020
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø100 M24 110 9.75.A.V7.12
Ø100 M20 200 9.75.A.V7.11
Ø100 M20 150 9.75.A.V7.10
Ø100 M20 110 9.75.A.V7.9
Ø100 M16 200 9.75.A.V7.8
Ø100 M16 150 9.75.A.V7.7
Ø100 M16 110 9.75.A.V7.6
Ø100 M16 60 9.75.A.V7.5
Ø100 M12 100 9.75.A.V7.4
Ø100 M12 50 9.75.A.V7.3
Ø100 M10 100 9.75.A.V7.2
Ø100 M10 50 9.75.A.V7.1

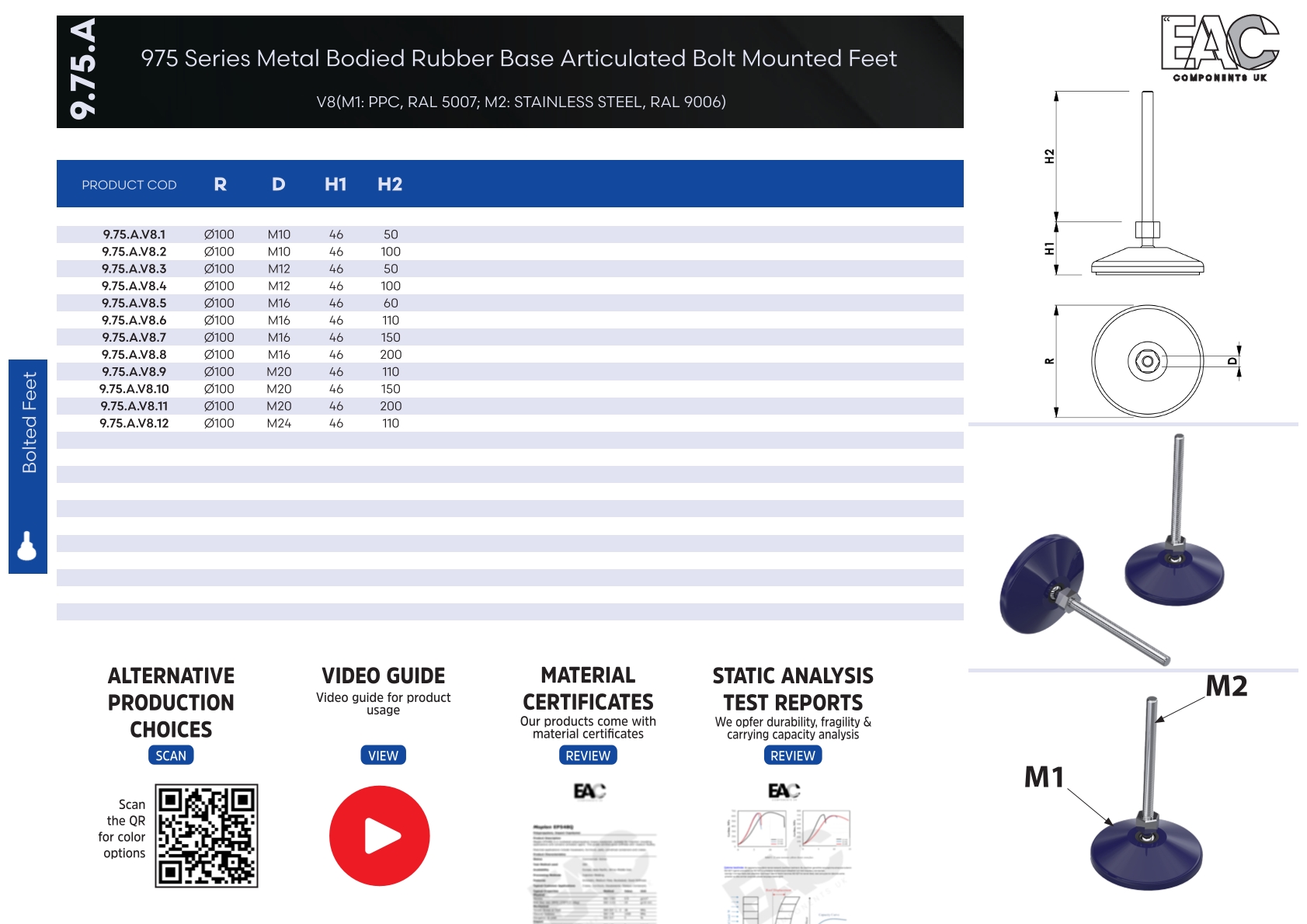

9.75.A.V8 - PPC - RAL 5007
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø100 M24 110 9.75.A.V8.12
Ø100 M20 200 9.75.A.V8.11
Ø100 M20 150 9.75.A.V8.10
Ø100 M20 110 9.75.A.V8.9
Ø100 M16 200 9.75.A.V8.8
Ø100 M16 150 9.75.A.V8.7
Ø100 M16 110 9.75.A.V8.6
Ø100 M16 60 9.75.A.V8.5
Ø100 M12 100 9.75.A.V8.4
Ø100 M12 50 9.75.A.V8.3
Ø100 M10 100 9.75.A.V8.2
Ø100 M10 50 9.75.A.V8.1
9.75.A.V9 - PPC - RAL 7016
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø100 M24 110 9.75.A.V9.12
Ø100 M20 200 9.75.A.V9.11
Ø100 M20 150 9.75.A.V9.10
Ø100 M20 110 9.75.A.V9.9
Ø100 M16 200 9.75.A.V9.8
Ø100 M16 150 9.75.A.V9.7
Ø100 M16 110 9.75.A.V9.6
Ø100 M16 60 9.75.A.V9.5
Ø100 M12 100 9.75.A.V9.4
Ø100 M12 50 9.75.A.V9.3
Ø100 M10 100 9.75.A.V9.2
Ø100 M10 50 9.75.A.V9.1
Technical Drawing
