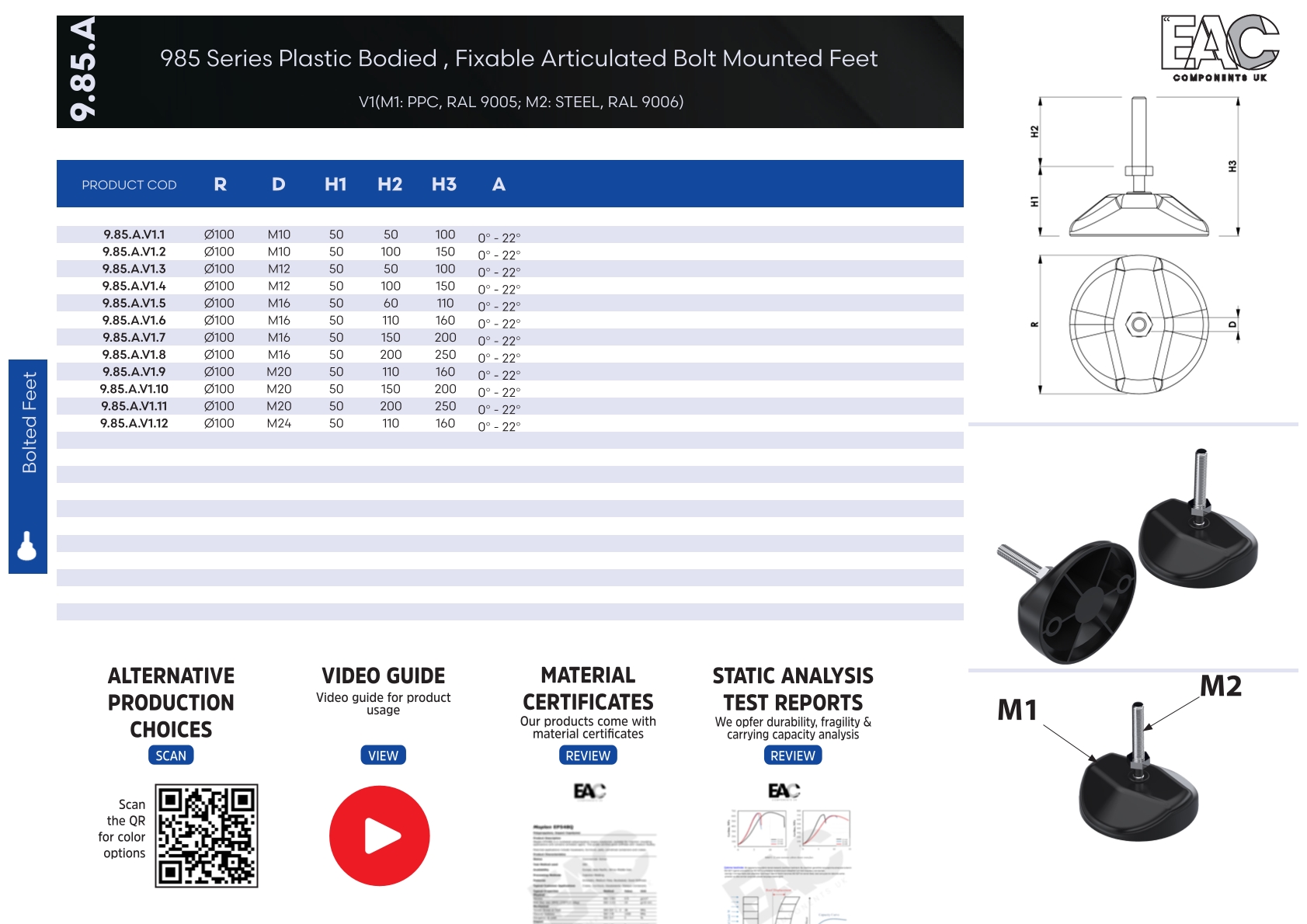

985 Series Plastic Bodied , Fixable Articulated Bolt Mounted Feet

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 9.85
Material and Color Options (V)
9.85.A.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø100 M10 50 9.85.A.V1.1
Ø100 M10 100 9.85.A.V1.2
Ø100 M12 50 9.85.A.V1.3
Ø100 M12 100 9.85.A.V1.4
Ø100 M16 60 9.85.A.V1.5
Ø100 M16 110 9.85.A.V1.6
Ø100 M16 150 9.85.A.V1.7
Ø100 M16 200 9.85.A.V1.8
Ø100 M20 110 9.85.A.V1.9
Ø100 M20 150 9.85.A.V1.10
Ø100 M20 200 9.85.A.V1.11
Ø100 M24 110 9.85.A.V1.12
Technical Drawing
3D Modelling
3D Modelling

To access the product file, you can click on the "Download 3D Model" button below, fill out the form and send it.

Download 3D Model
Montage Video

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Technical Detail

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Raw Material Certificate

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Quality and Analysis Certificates

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Category Introduction

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
